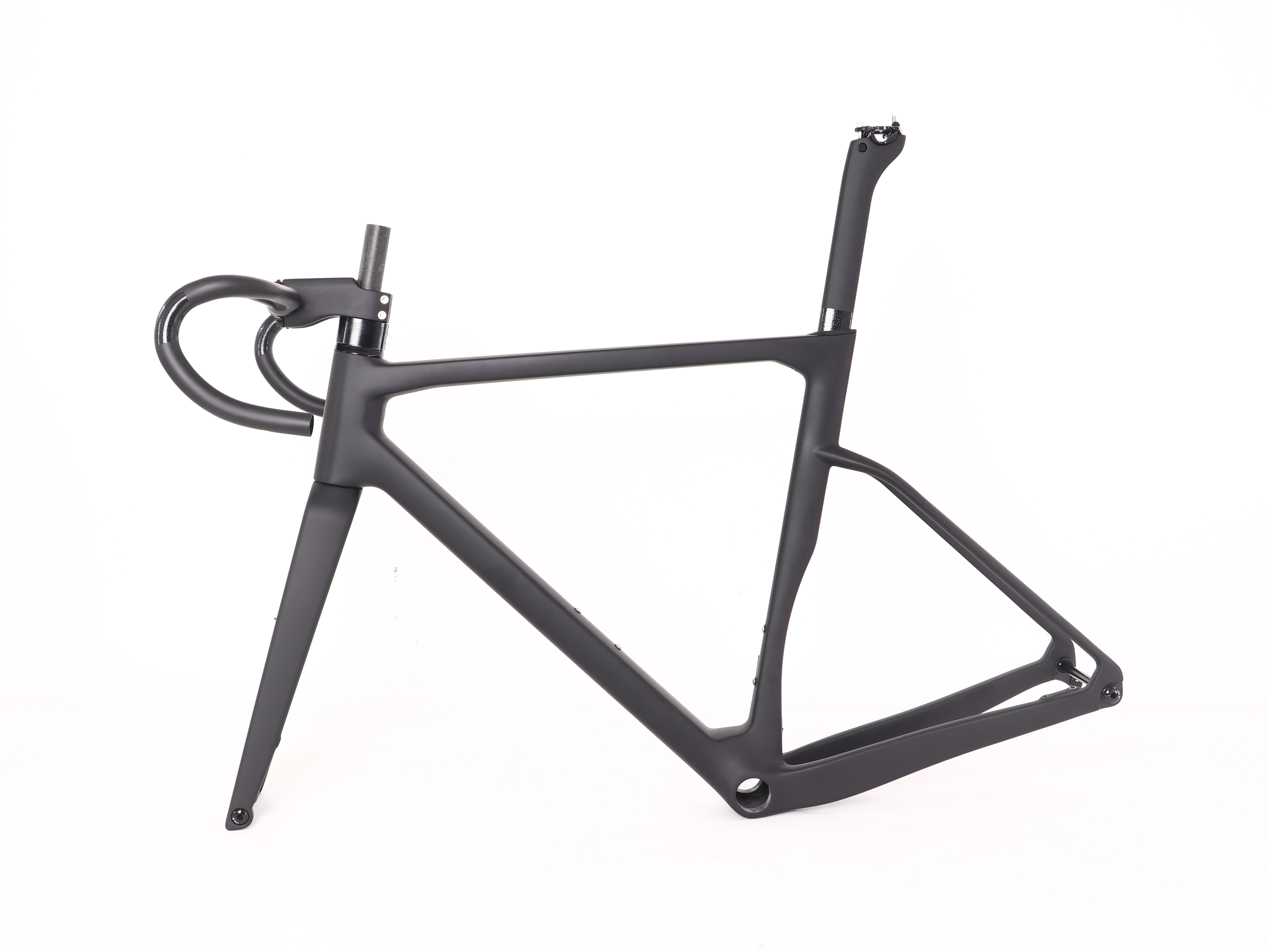

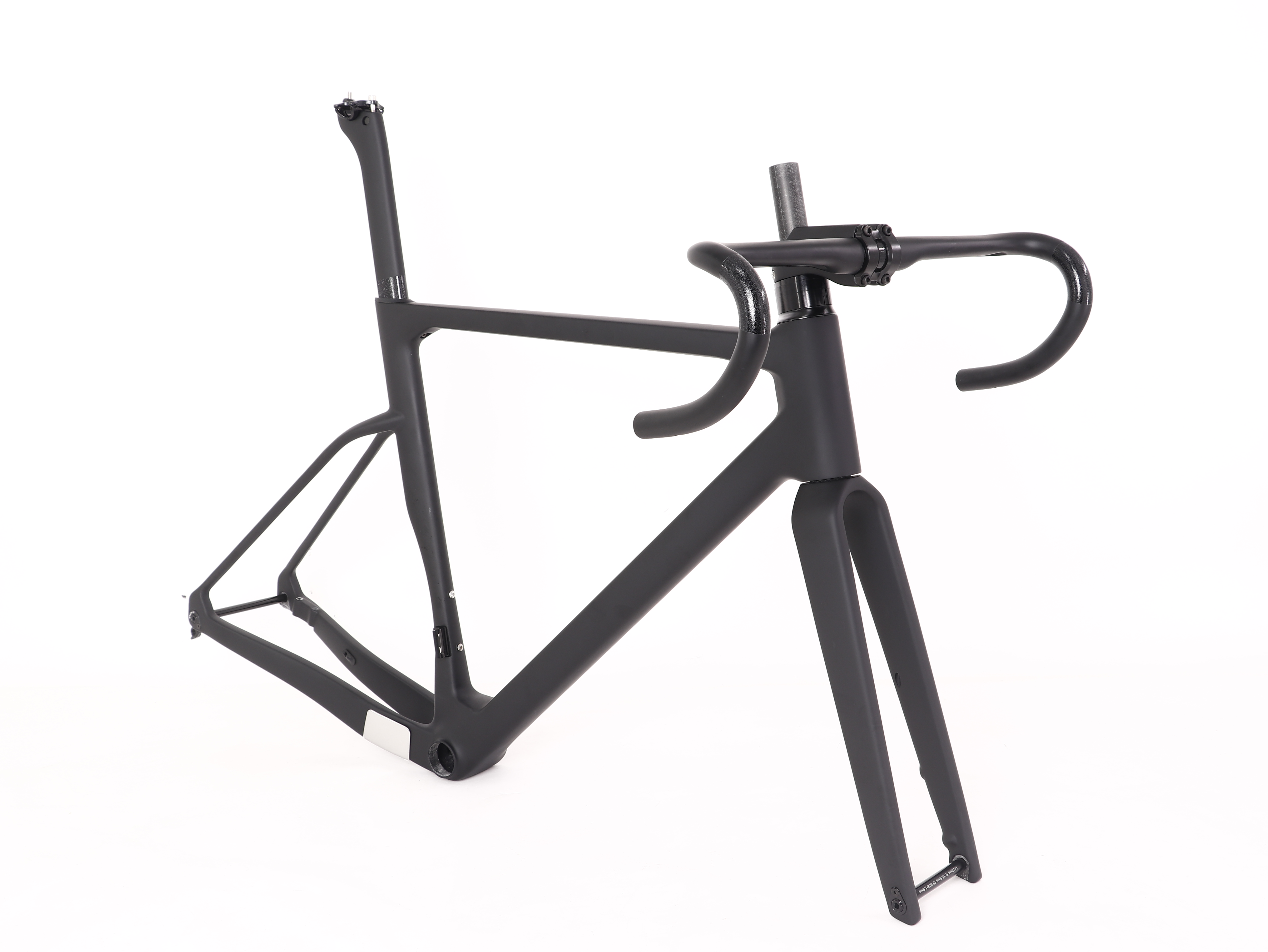

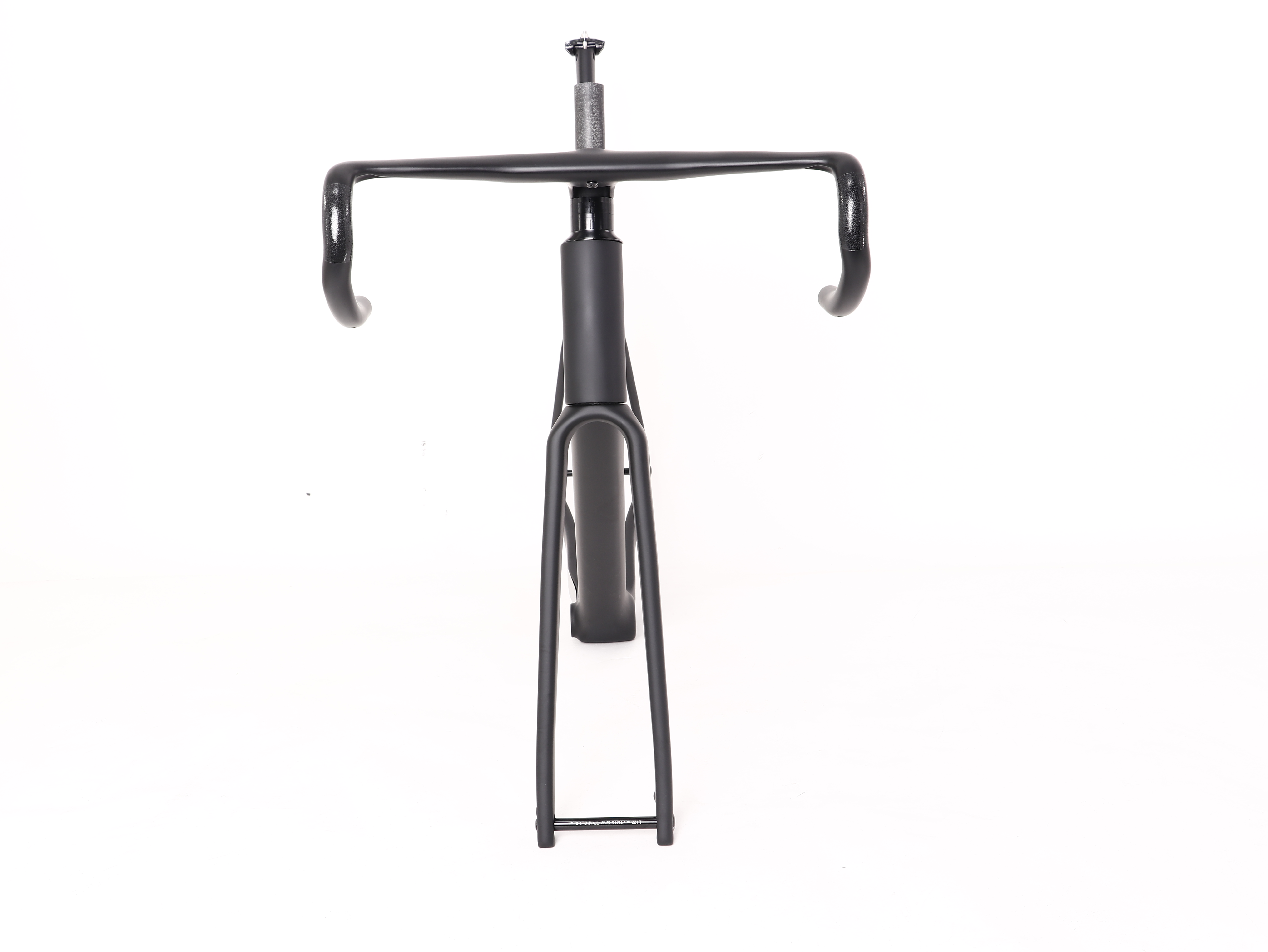

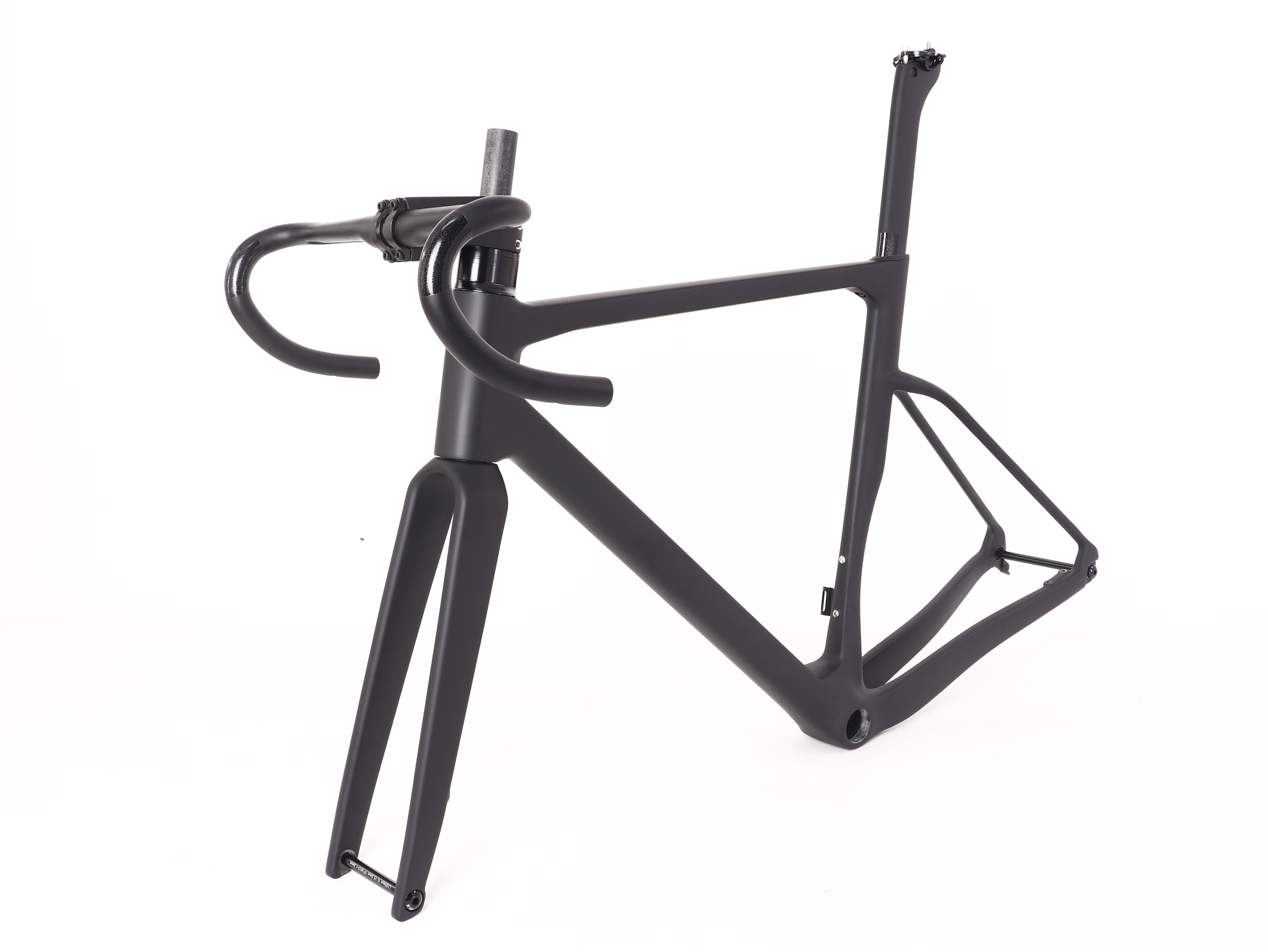

HTCX-02 Carbon Gravel / CX Disc Frameset
HTCX-02
Gravel / CX disc frameset for gravel, cyclocross, off-road road and OEM projects; Toray T800 carbon fiber; BB86 press-fit, ID 41 mm, width 86.5 mm; max tire 700 x 46C
HTCX-02 is a carbon gravel / cx disc frameset for gravel / cx disc frameset for gravel, cyclocross, off-road road and oem projects. Catalog specification: Toray T800 carbon fiber; EPS + latex molding; BB86 press-fit, ID 41 mm, width 86.5 mm; Fully integrated internal routing. Final quotation should confirm size, finish, included parts, packing and project requirements.
Specification
HTCX-02 Product Specification
Product Type
Gravel / CX frameset
Material
Toray T800 carbon fiber
Size
XS / S / M / L / XL
Weight
1000 g (size M, clear coat, excl. metal parts)
Brake Mount Type
Flat mount disc
Max Tire Clearance
700 x 46C
MOQ
30 pcs
Sample Lead Time
Approx. 45 days after payment and final confirmation
BB
BB86 press-fit, ID 41 mm, width 86.5 mm
Kit
frame, dedicated fork, seatpost, handlebar, dust cover, headset, F/R thru axles and seat clamp
Use
Gravel / CX disc frameset for gravel, cyclocross, off-road road and OEM projects
Name
Carbon gravel / CX disc frameset
Type
Gravel / CX frameset
Wheel
700C
Hanger
standard derailleur hanger
Bar Wt.
380 g
Headset
1-1/2 x 7 mm, upper/lower same spec
Process
EPS + latex molding
Routing
Fully integrated internal routing
F/R Axle
100 x 12 mm; M12 x 1.5 x 130 mm / 142 x 12 mm; M12 x 1.5 x 163 mm
Fork Wt.
410 g
Seatpost
full carbon aero, 400 mm; 0 / 20 mm setback optional
Frame Wt.
1000 g (size M, clear coat, excl. metal parts)
Bar / Stem
integrated bar 380/90 to 440/120 mm; separate bar 400/420/440 mm, stem 80-120 mm
Drivetrain
Di2 / eTap compatible
Rear Spacing
142 x 12 mm
Seatpost Wt.
230 g (excl. metal parts)
Geometry

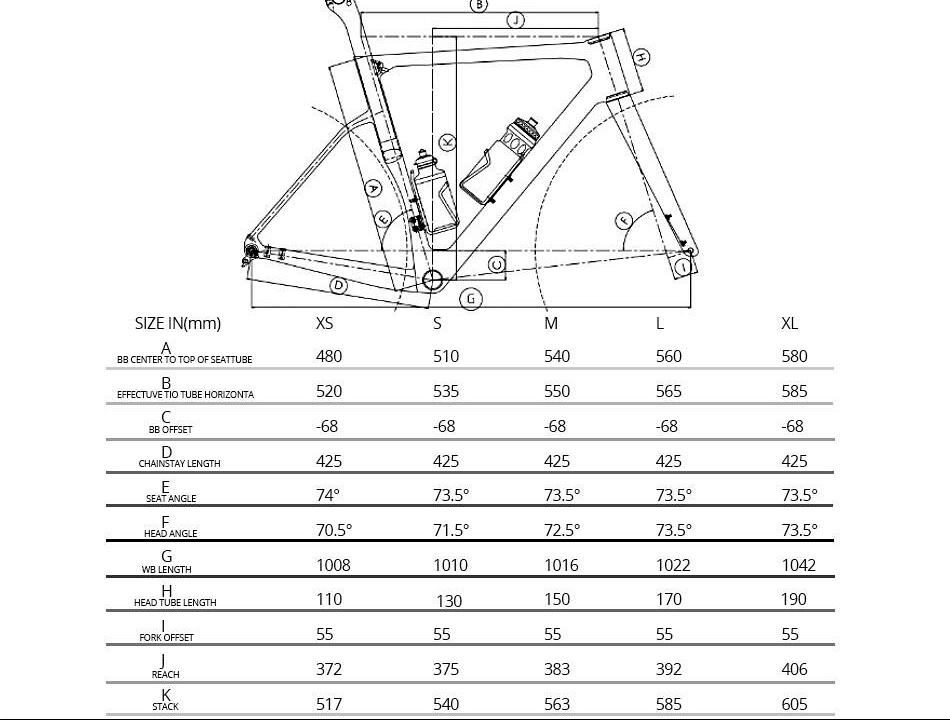

HTCX-02 Geometry and Size Chart
| Size | Stack | Reach | Seat Tube | Top Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase | BB Drop | Front Center | Fork Offset | Fork Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517.00 | 372.00 | 480.00 | 520.00 | 110.00 | 70.50 | 74.00 | 425.00 | 1008.00 | 68.00 | - | 55.00 | - |
| S | 540.00 | 375.00 | 510.00 | 535.00 | 130.00 | 71.50 | 73.50 | 425.00 | 1010.00 | 68.00 | - | 55.00 | - |
| M | 563.00 | 383.00 | 540.00 | 550.00 | 150.00 | 72.50 | 73.50 | 425.00 | 1016.00 | 68.00 | - | 55.00 | - |
| L | 585.00 | 392.00 | 560.00 | 565.00 | 170.00 | 73.50 | 73.50 | 425.00 | 1022.00 | 68.00 | - | 55.00 | - |
| XL | 605.00 | 406.00 | 580.00 | 585.00 | 190.00 | 73.50 | 73.50 | 425.00 | 1042.00 | 68.00 | - | 55.00 | - |

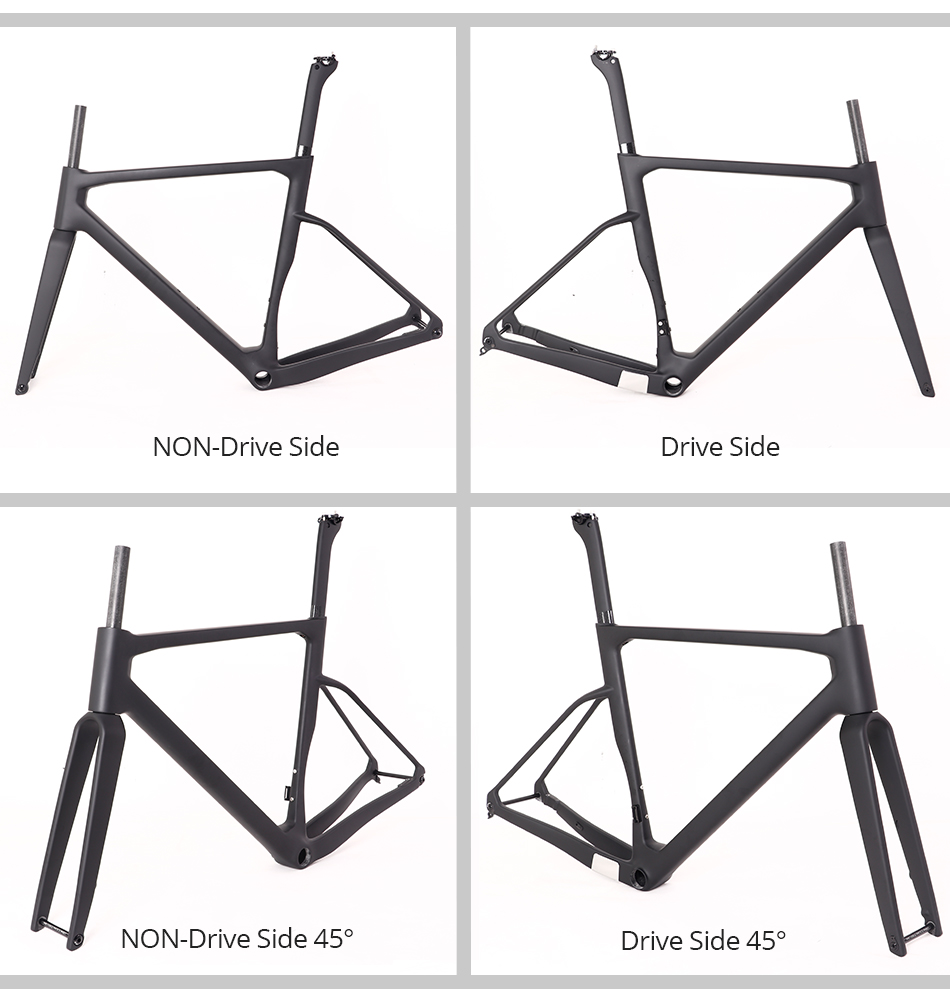

Technology
HTCX-02 Design Highlights
OEM / ODM
Customized Painting and OEM Support
Downloads
Technical files and documents
Product RFQ
Send Inquiry
Send model, quantity, target market and project notes. Sales will reply with the next confirmation step.
