HTR-060 Aero Disc Road Frameset

HTR-060

Road racing / aero road / OEM road frameset projects; Toray T800 carbon fiber + T1000 reinforcement; T47 threaded; max tire 700 x 32C

HTR-060 is a aero disc road frameset for road racing / aero road / oem road frameset projects. Catalog specification: Toray T800 carbon fiber + T1000 reinforcement; Latex EPS molding; T47 threaded; Fully integrated internal routing. Final quotation should confirm size, finish, included parts, packing and project requirements.

Frame Size: 44

INTEGRATED Handlebar Size: 380/90

Finish: UD Matte

Paint Option: UD Carbon

Request Quote WhatsApp

Design this frame HTR-060 geometry PDF

Specification

HTR-060 Product Specification

Product Type

Road frameset

Material

Toray T800 carbon fiber + T1000 reinforcement

Size

44/48/52/55/58/61

Weight

1180 g (size 55, raw frame)

Brake Mount Type

Flat mount disc

Max Tire Clearance

700 x 32C

MOQ

30 pcs

Sample Lead Time

Approx. 45 days after payment and final confirmation

T47 threaded

Kit

frame, dedicated fork, seatpost / ISP topper, headset, seat clamp, UDH hanger, F/R thru axles, spacers and small parts

Use

Road racing / aero road / OEM road frameset projects

Name

Aero disc road frameset

Type

Road frameset

Wheel

700C

Hanger

UDH

Headset

1-1/2" (52 mm) upper/lower; 52 x 7.5 mm

Process

Latex EPS molding

Routing

Fully integrated internal routing

F/R Axle

12 x 100 mm / 12 x 142 mm

Fork Wt.

450 g

Seatpost

ISP topper / seatpost system, 83 g

Frame Wt.

1180 g (size 55, raw frame)

Bar / Stem

bar 380/400/420 mm; stem 90/100/110 mm

Rear Spacing

12 x 142 mm

Seatpost Wt.

83 g

Geometry

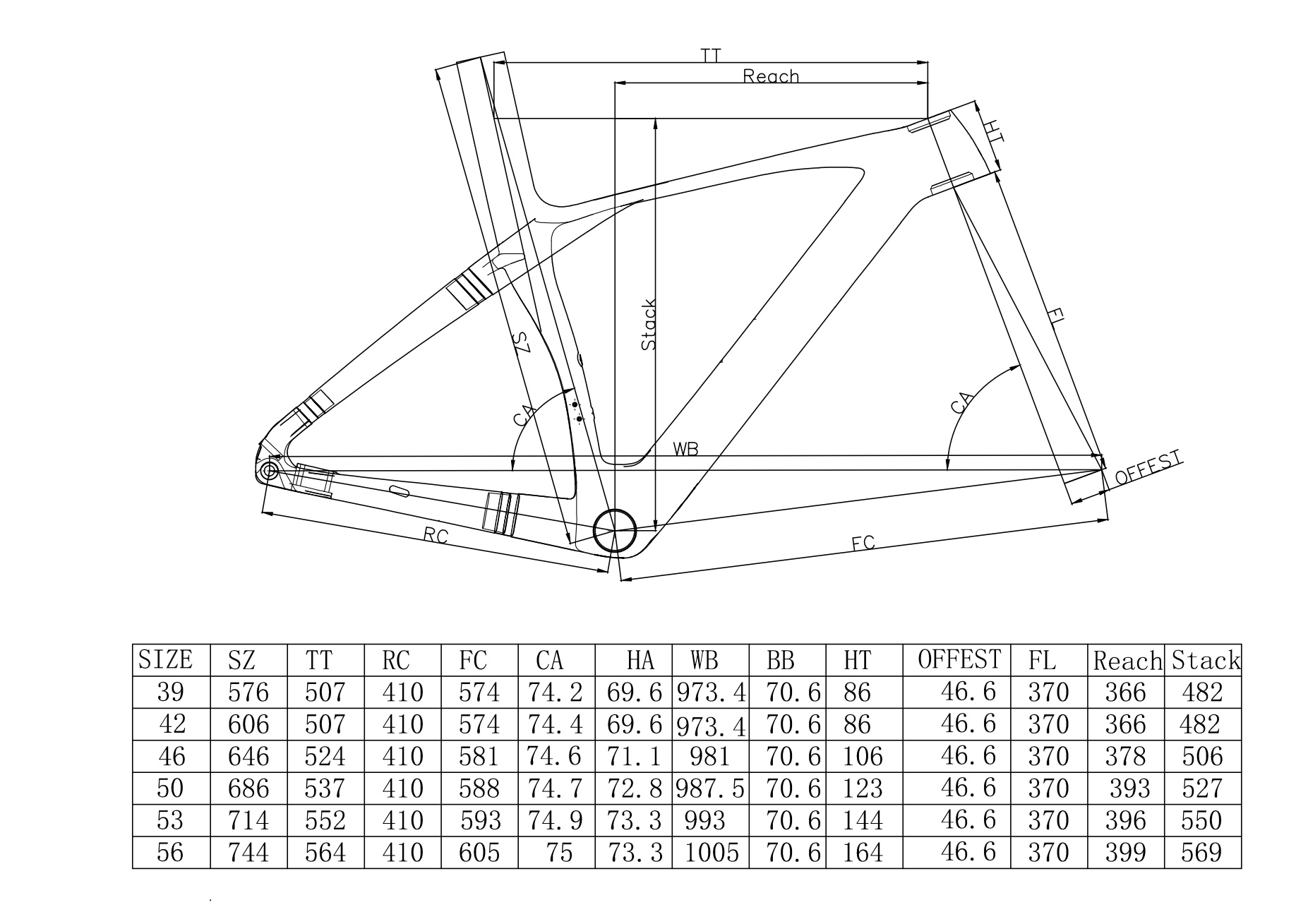

HTR-060 Geometry and Size Chart

Size	Stack	Reach	Seat Tube	Top Tube	Head Tube	Head Angle	Seat Angle	Chainstay	Wheelbase	BB Drop	Front Center	Fork Offset	Fork Length
39	482.00	366.00	576.00	507.00	86.00	69.60	74.20	410.00	973.40	70.60	574.00	46.60	370.00
42	482.00	366.00	606.00	507.00	86.00	69.60	74.40	410.00	973.40	70.60	574.00	46.60	370.00
46	506.00	378.00	646.00	524.00	106.00	71.10	74.60	410.00	981.00	70.60	581.00	46.60	370.00
50	527.00	393.00	686.00	537.00	123.00	72.80	74.70	410.00	987.50	70.60	588.00	46.60	370.00
53	550.00	396.00	714.00	552.00	144.00	73.30	74.90	410.00	993.00	70.60	593.00	46.60	370.00
56	569.00	399.00	744.00	564.00	164.00	73.30	75.00	410.00	1005.00	70.60	605.00	46.60	370.00
