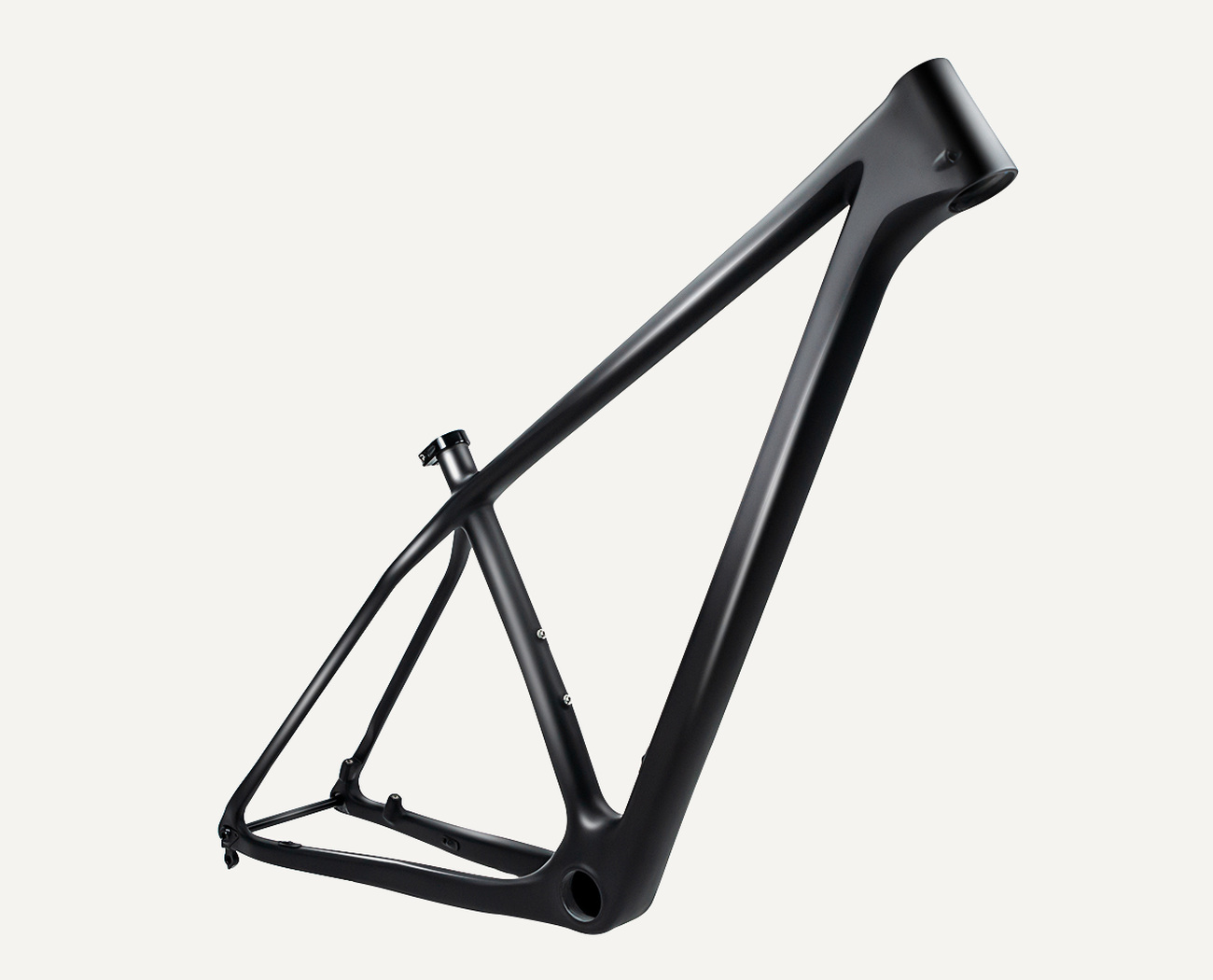

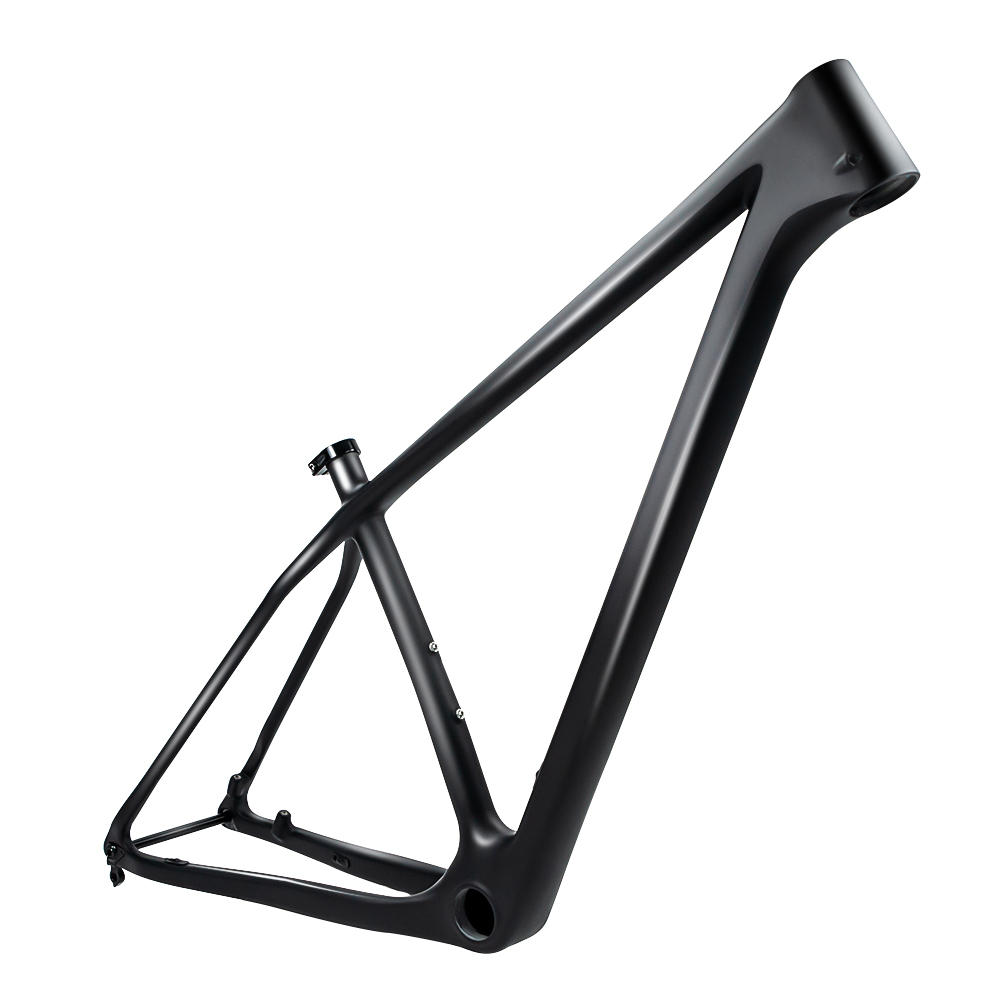

HTM-03 Disc Hardtail MTB Frame
HTM-03
Disc hardtail MTB frame; 29er; MTB hardtail projects; Toray T800 carbon fiber + T1000 reinforcement; PF30 PressFit; max tire 2.3 inch
HTM-03 is a disc hardtail mtb frame for disc hardtail mtb frame; 29er; mtb hardtail projects. Catalog specification: Toray T800 carbon fiber + T1000 reinforcement; PU + bladder molding; PF30 PressFit; Internal cable routing. Final quotation should confirm size, finish, included parts, packing and project requirements.
Frame Size: 15"
Finish: UD Matte
Paint Option: UD Carbon
Specification
HTM-03 Product Specification
Product Type
MTB frame
Material
Toray T800 carbon fiber + T1000 reinforcement
Size
15" / 17" / 19"
Weight
1070 +/- 30 g
Brake Mount Type
Disc brake / flat mount disc
Max Tire Clearance
2.3 inch
MOQ
30 pcs
Sample Lead Time
Approx. 45 days after payment and final confirmation
BB
PF30 PressFit
Kit
frame, headset, 31.9 mm seat clamp, 148 x 12 mm rear thru axle
Use
Disc hardtail MTB frame; 29er; MTB hardtail projects
Name
Disc hardtail MTB frame
Type
MTB frame
Wheel
27.5er / 29er
Hanger
thru-axle hanger / Boost rear triangle
Headset
1-1/8" to 1-1/2"
Packing
110 cm x 25 cm x 60 cm
Process
PU + bladder molding
Routing
Internal cable routing
Seatpost
27.2 mm; seat clamp 31.8 mm
Frame Wt.
1070 +/- 30 g
Rear Axle
Boost 148 x 12 mm
Front Axle
N/A; fork not included in frame spec
Geometry

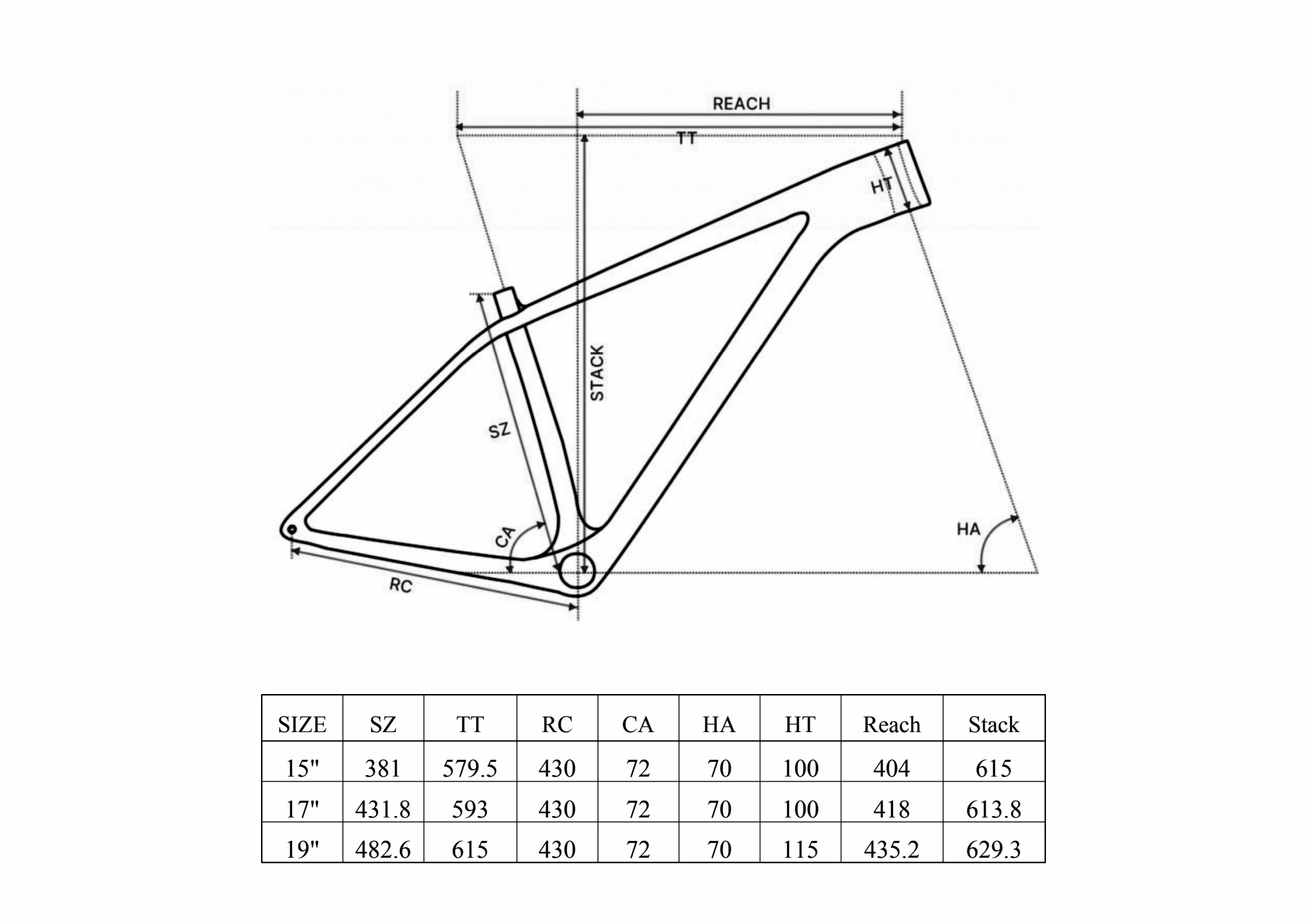

HTM-03 Geometry and Size Chart
| Size | Stack | Reach | Seat Tube | Top Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase | BB Drop | Front Center | Fork Offset | Fork Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15" | 615.00 | 404.00 | 381.00 | 579.50 | 100.00 | 70.00 | 72.00 | 430.00 | - | - | - | - | - |
| 17" | 613.80 | 418.00 | 431.80 | 593.00 | 100.00 | 70.00 | 72.00 | 430.00 | - | - | - | - | - |
| 19" | 629.30 | 435.20 | 482.60 | 615.00 | 115.00 | 70.00 | 72.00 | 430.00 | - | - | - | - | - |
Technology
HTM-03 Design Highlights
