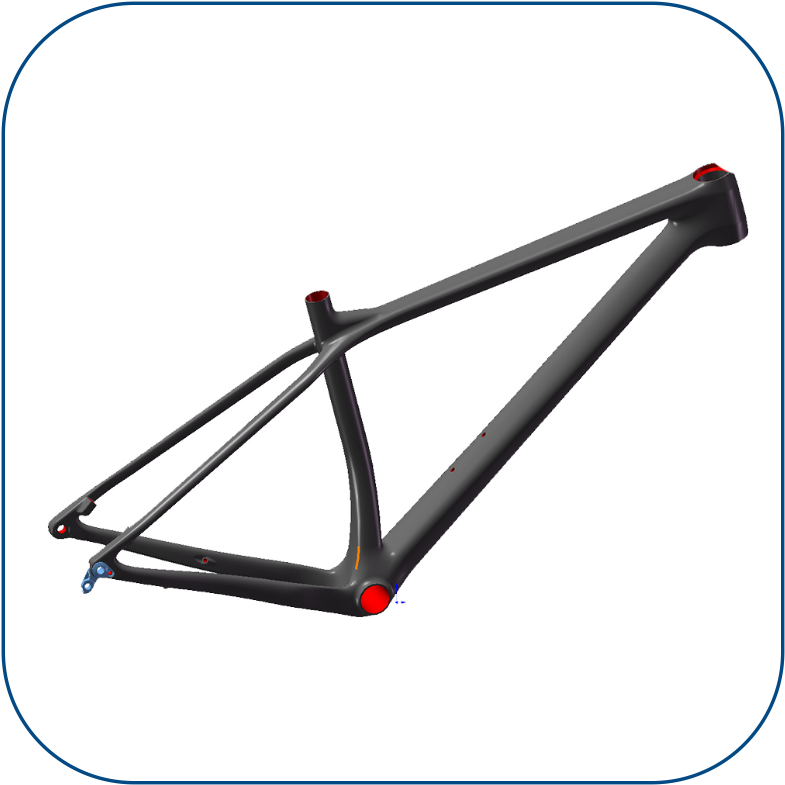

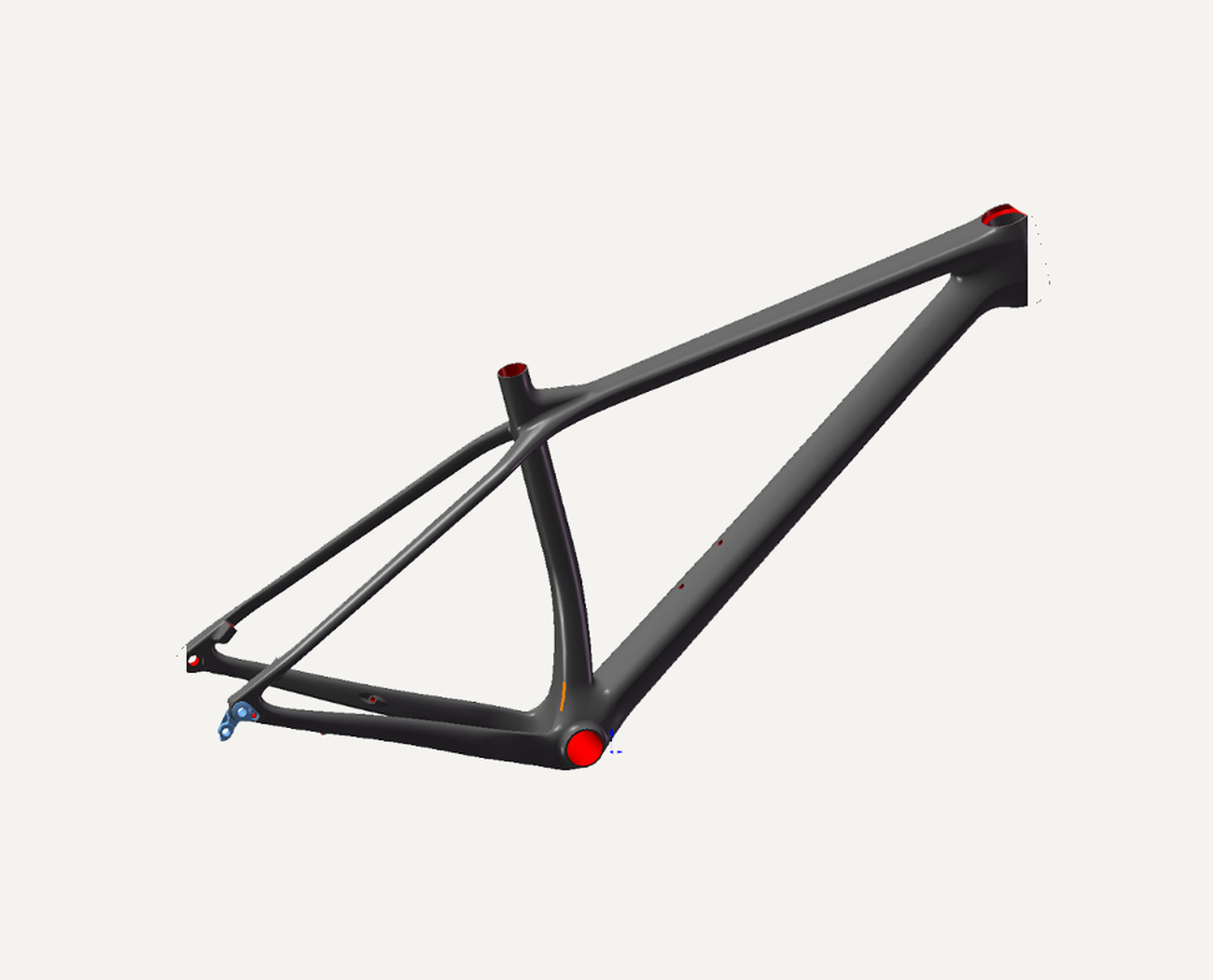

HTM-08 Disc Hardtail MTB Frame

HTM-08

Disc hardtail MTB frame; compatible with 29" / 27.5" wheels; Toray T800 carbon fiber + T1000 reinforcement; BB92 press-fit; max tire 29 x 2.3 / 27.5 x 2.5

HTM-08 is a disc hardtail mtb frame for disc hardtail mtb frame; compatible with 29" / 27.5" wheels. Catalog specification: Toray T800 carbon fiber + T1000 reinforcement; PU + bladder molding; BB92 press-fit; Internal cable routing. Final quotation should confirm size, finish, included parts, packing and project requirements.

Frame Size: S

Handlebar Size: 380

Finish: UD Matte

Paint Option: UD Carbon

Request Quote WhatsApp

Design this frame HTM-08 geometry PDF

Specification

HTM-08 Product Specification

Product Type

MTB frame

Material

Toray T800 carbon fiber + T1000 reinforcement

Size

S (15", 150-165 cm) / M (17", 160-175 cm) / L (19", 170-185 cm)

Weight

1080 g +/- 30 g

Brake Mount Type

Confirm by model

Max Tire Clearance

29 x 2.3 / 27.5 x 2.5

MOQ

30 pcs

Sample Lead Time

Approx. 45 days after payment and final confirmation

BB92 press-fit

Kit

headset and thru axle

Use

Disc hardtail MTB frame; compatible with 29" / 27.5" wheels

Name

Disc hardtail MTB frame

Type

MTB frame

Wheel

29" / 27.5"

Hanger

UDH

Headset

upper 1-1/2" (52 mm), lower 1-1/2" (52 mm)

Process

PU + bladder molding

Routing

Internal cable routing

Seatpost

fits 30.8 mm seatpost; 34.8 mm seat clamp

Frame Wt.

1080 g +/- 30 g

Rear Axle

Boost 12 x 148 mm

Rear Spacing

Boost 12 x 148 mm

Geometry

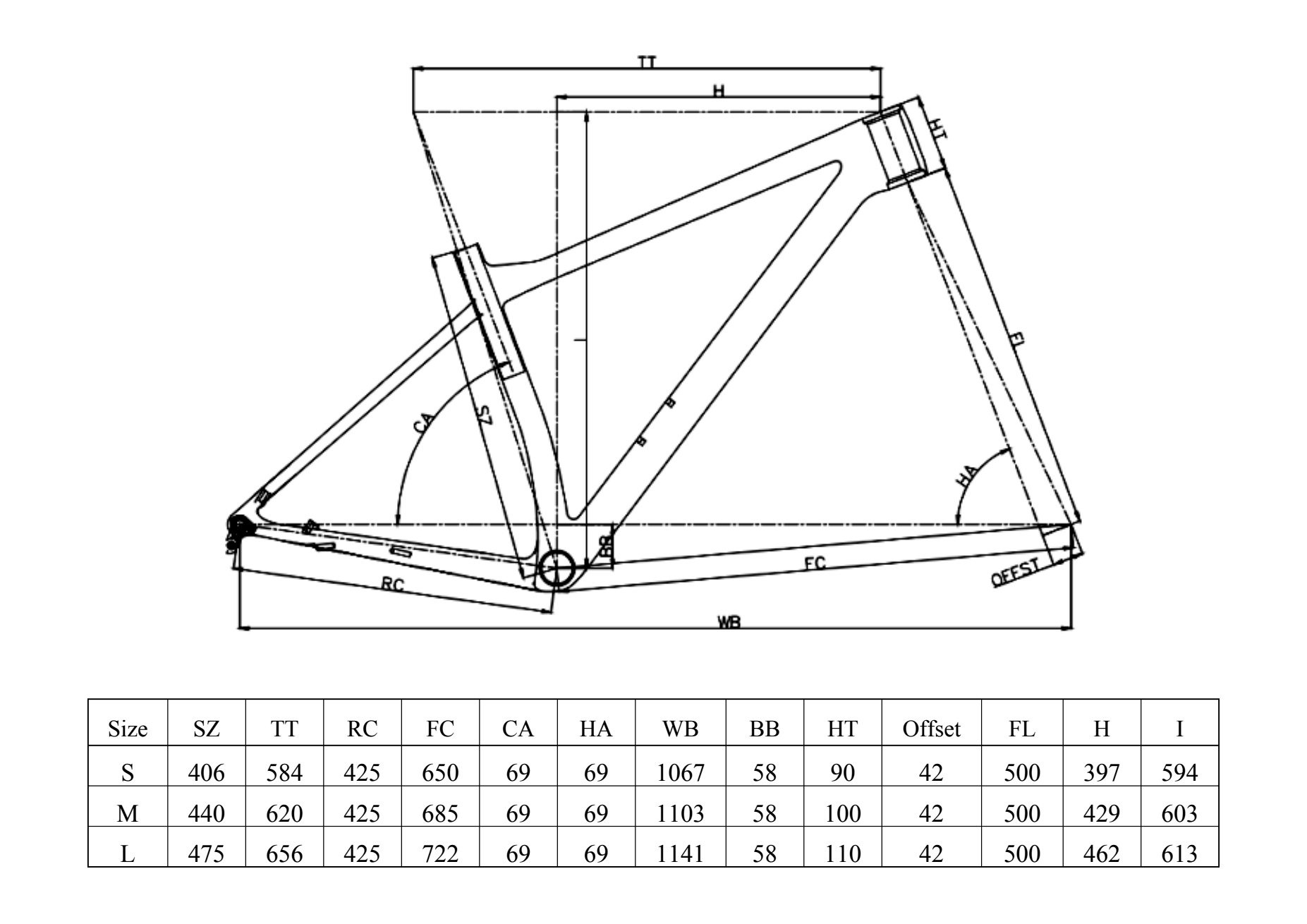

HTM-08 Geometry and Size Chart

Size	Stack	Reach	Seat Tube	Top Tube	Head Tube	Head Angle	Seat Angle	Chainstay	Wheelbase	BB Drop	Front Center	Fork Offset	Fork Length
S	594.00	397.00	406.00	584.00	90.00	69.00	69.00	425.00	1067.00	58.00	650.00	42.00	500.00
M	603.00	429.00	440.00	620.00	100.00	69.00	69.00	425.00	1103.00	58.00	685.00	42.00	500.00
L	613.00	462.00	475.00	656.00	110.00	69.00	69.00	425.00	1141.00	58.00	722.00	42.00	500.00
