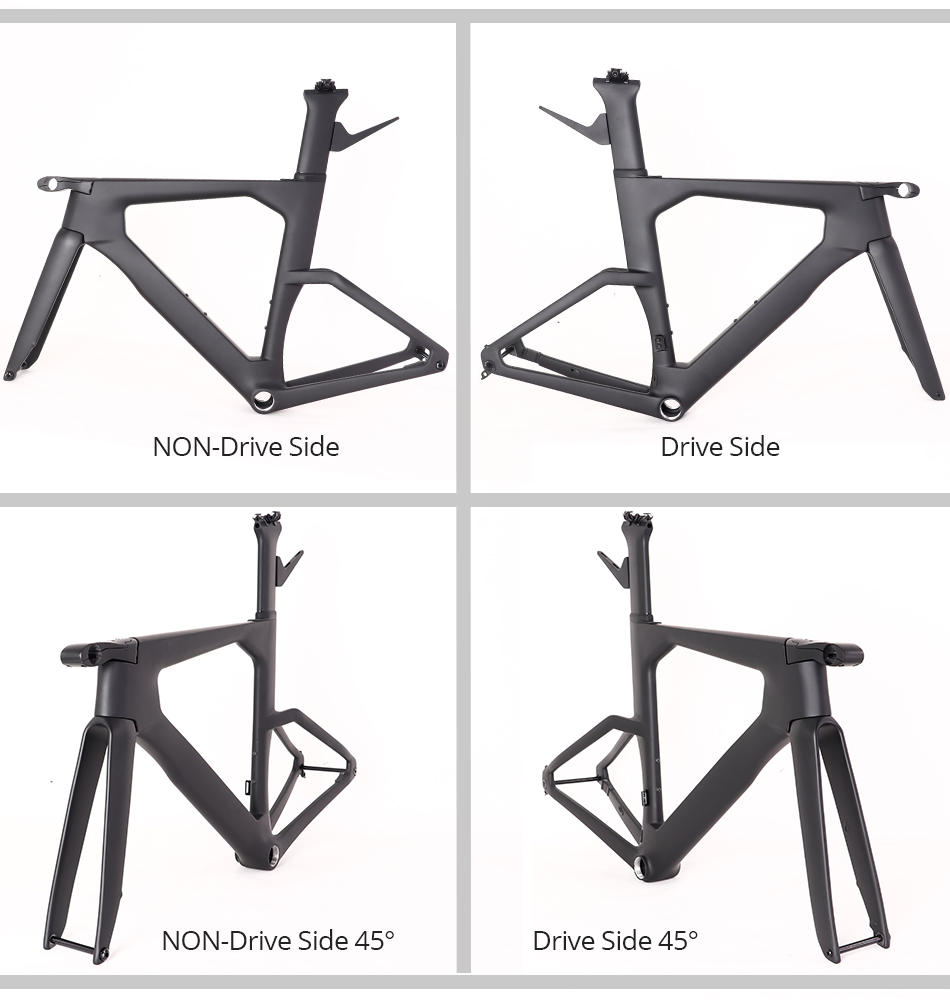

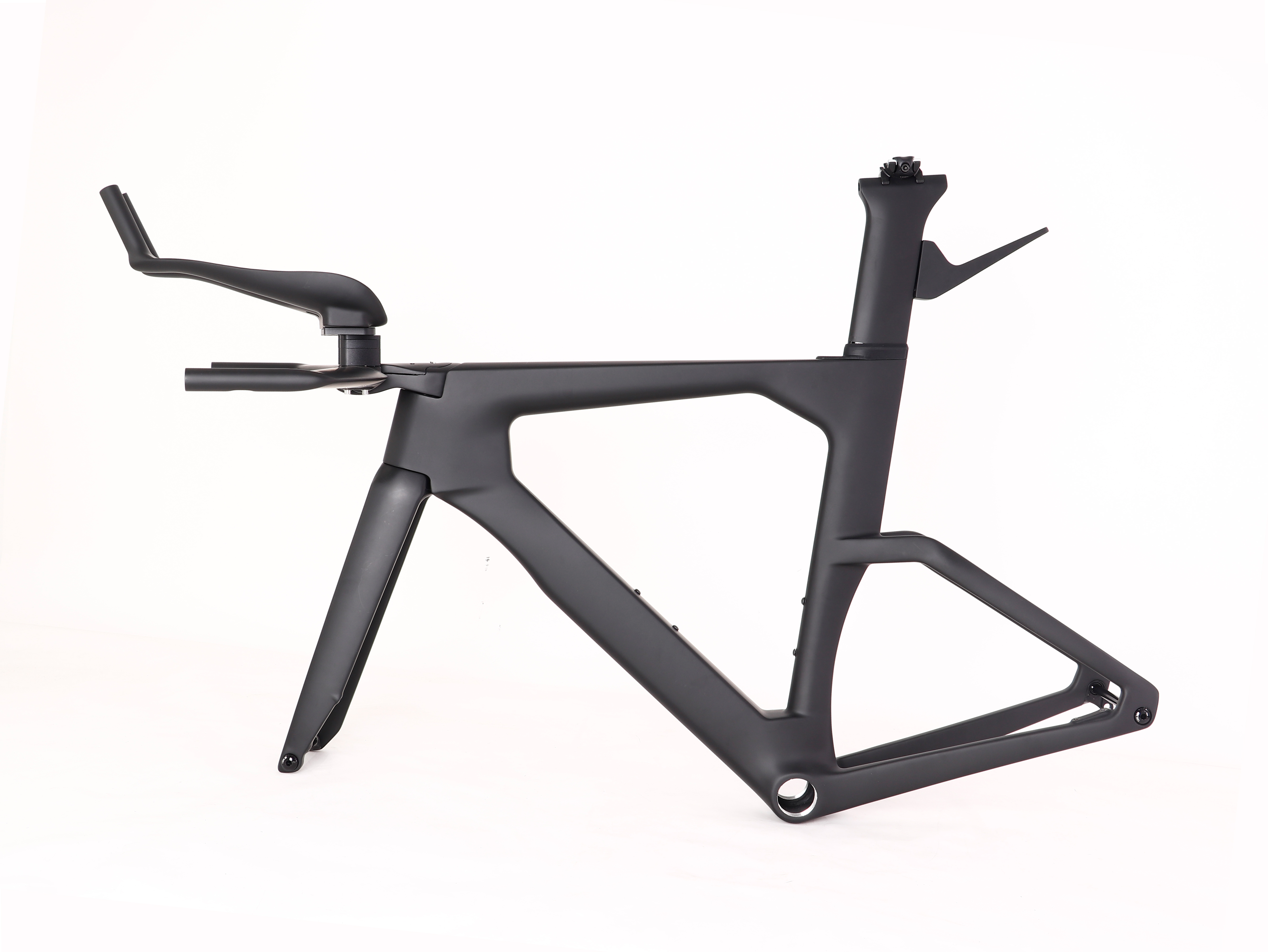

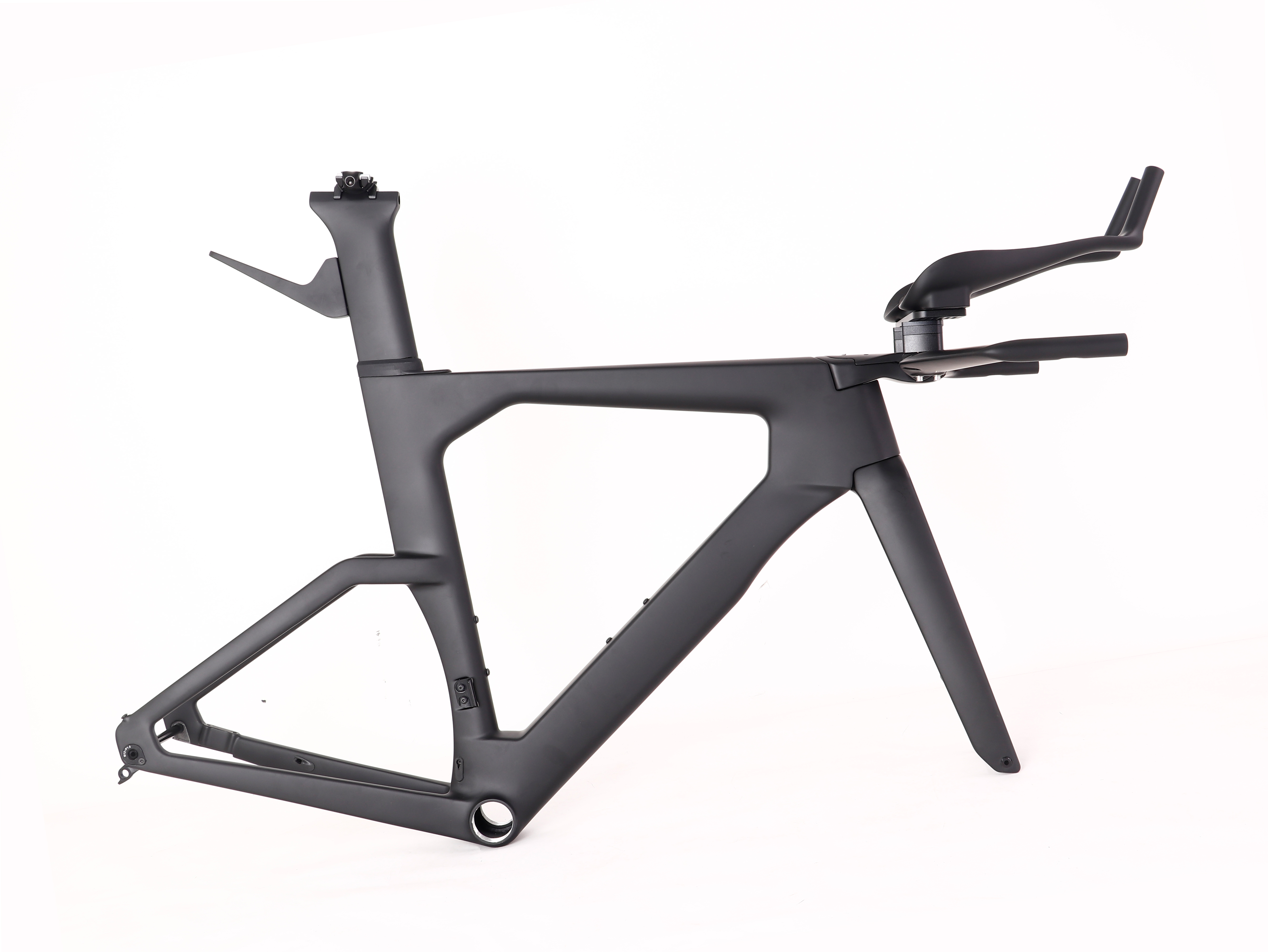

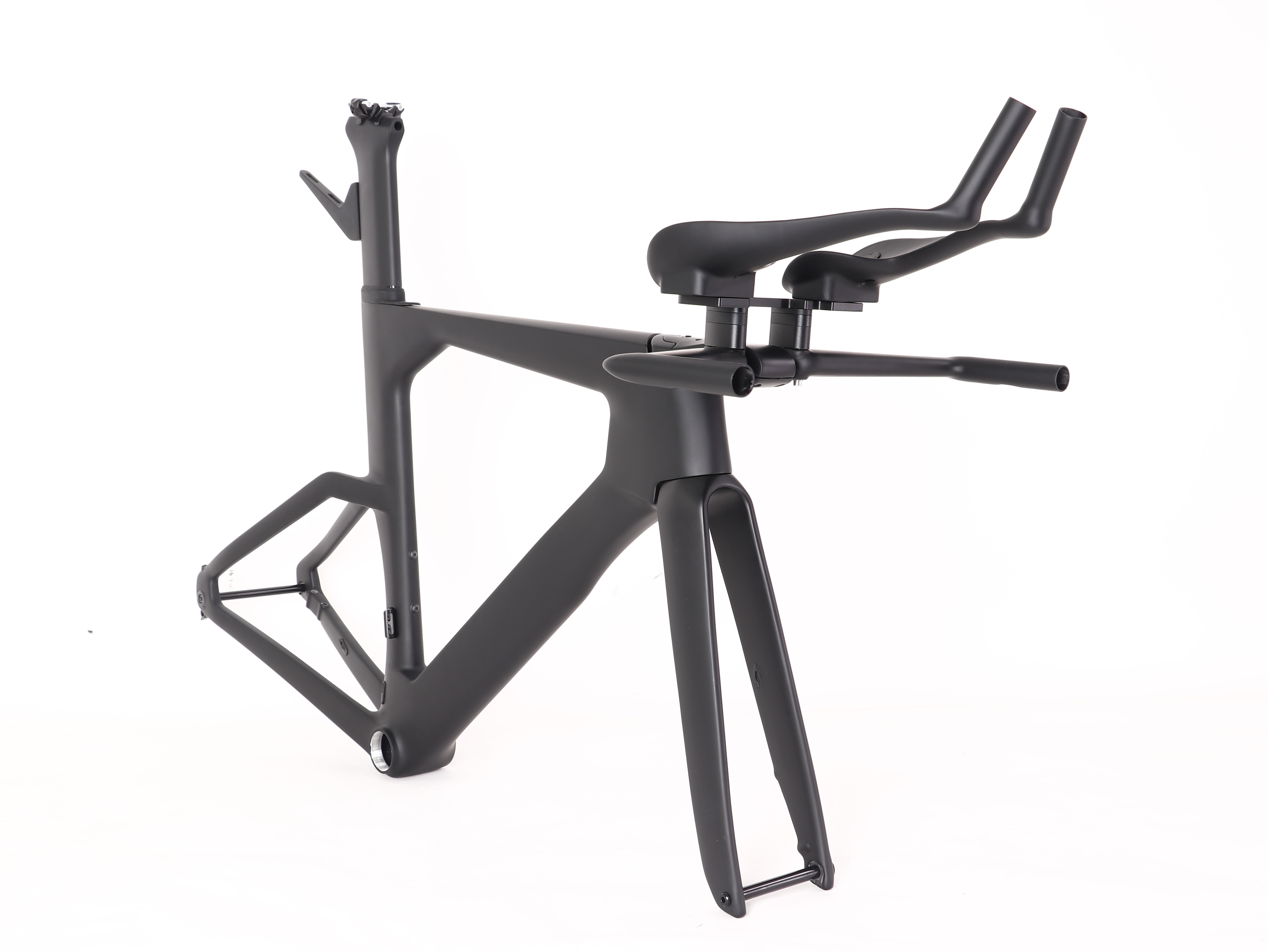

HTTT-05 Carbon Disc TT / Time Trial Frameset
HTTT-05
T47 carbon TT / time trial disc frameset for TT and triathlon projects; Full carbon fiber; T47 threaded, ID 46 mm, width 86.5 mm; max tire 700 x 32C
HTTT-05 is a carbon disc tt / time trial frameset for t47 carbon tt / time trial disc frameset for tt and triathlon projects. Catalog specification: Full carbon fiber; EPS + latex molding; T47 threaded, ID 46 mm, width 86.5 mm; Fully integrated internal routing. Final quotation should confirm size, finish, included parts, packing and project requirements.
Specification
HTTT-05 Product Specification
Product Type
TT / time trial frameset
Material
Full carbon fiber
Size
S/M/L
Weight
1450 g (size M, clear coat, excl. metal parts)
Brake Mount Type
Flat mount disc
Max Tire Clearance
700 x 32C
MOQ
30 pcs
Sample Lead Time
Approx. 45 days after payment and final confirmation
BB
T47 threaded, ID 46 mm, width 86.5 mm
Kit

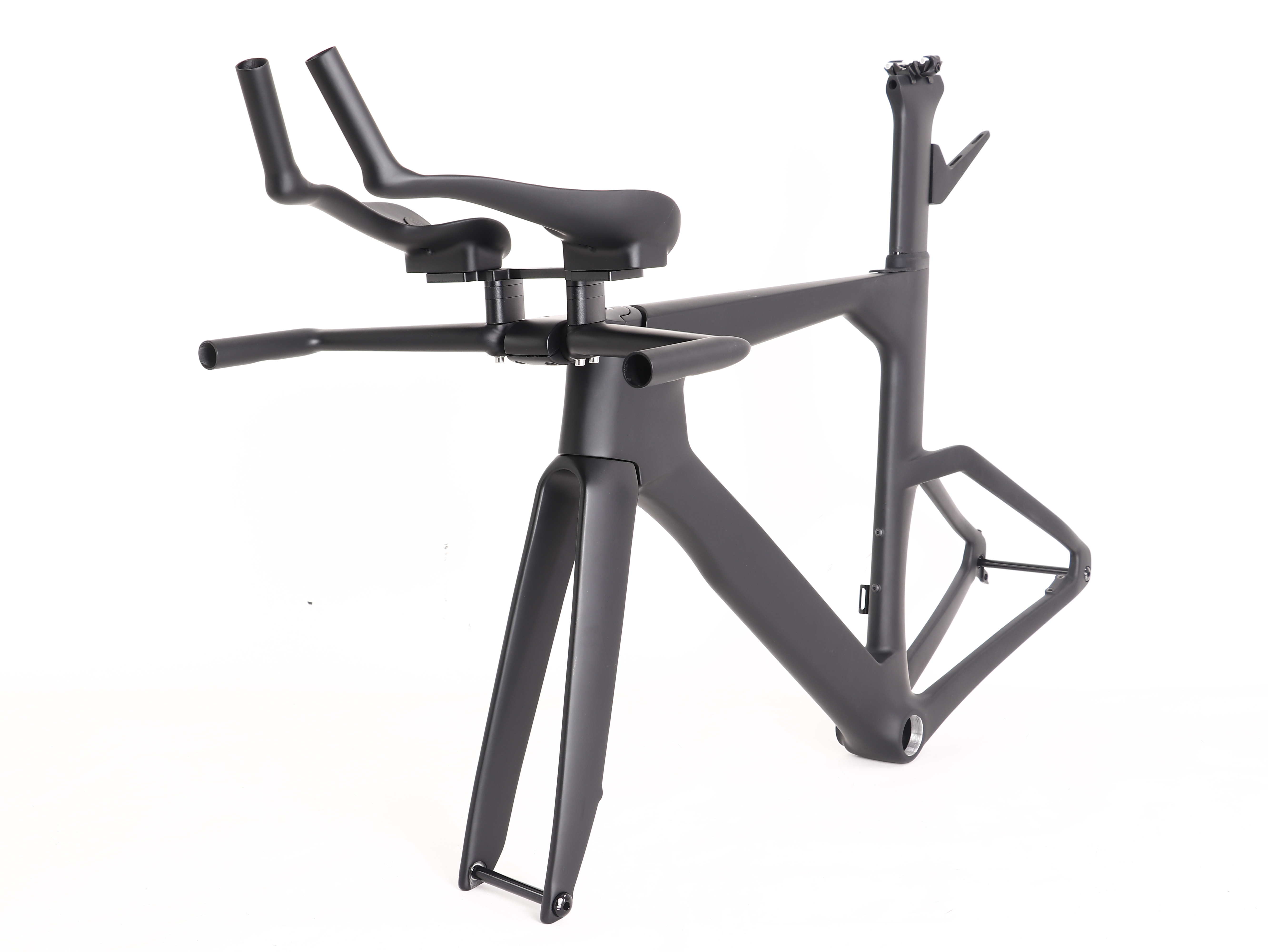

frame, fork, TT bar assembly, seatpost, headset, thru axles and small parts
Use
T47 carbon TT / time trial disc frameset for TT and triathlon projects
Name
Carbon disc TT / time trial frameset
Type
TT / time trial frameset
Wheel
700C
Bar Wt.
TT bar assembly 780 g; stem 235 g
Headset
1-1/2 x 7 mm, upper/lower same spec
Process
EPS + latex molding
Routing
Fully integrated internal routing
F/R Axle
M12 x 1.5 x 130 mm / M12 x 1.5 x 163 mm
Fork Wt.
425 g
Seatpost
full carbon, 400 mm, single-bolt micro-adjustment; torque 8.0 Nm
Frame Wt.
1450 g (size M, clear coat, excl. metal parts)
Bar / Stem

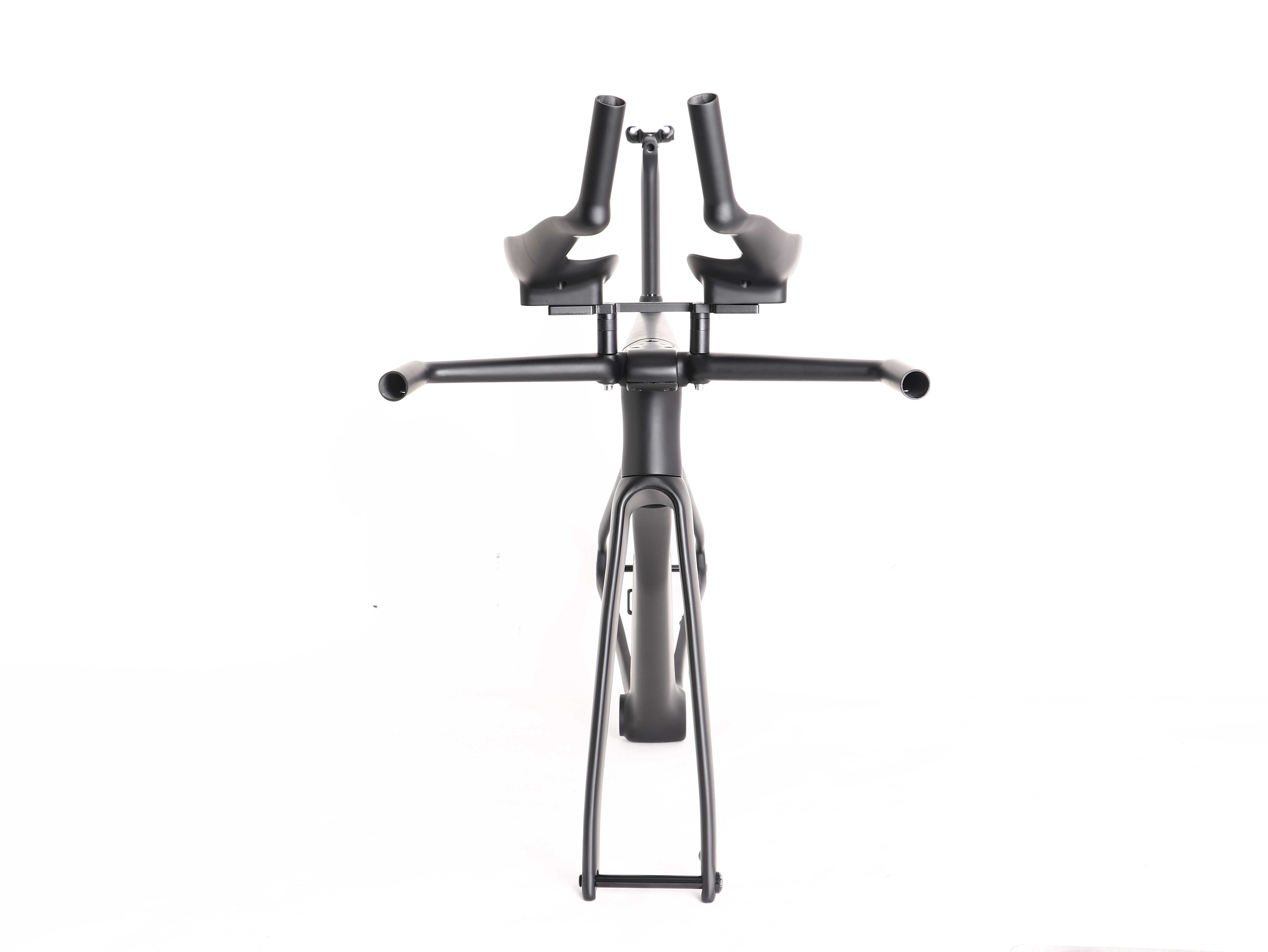

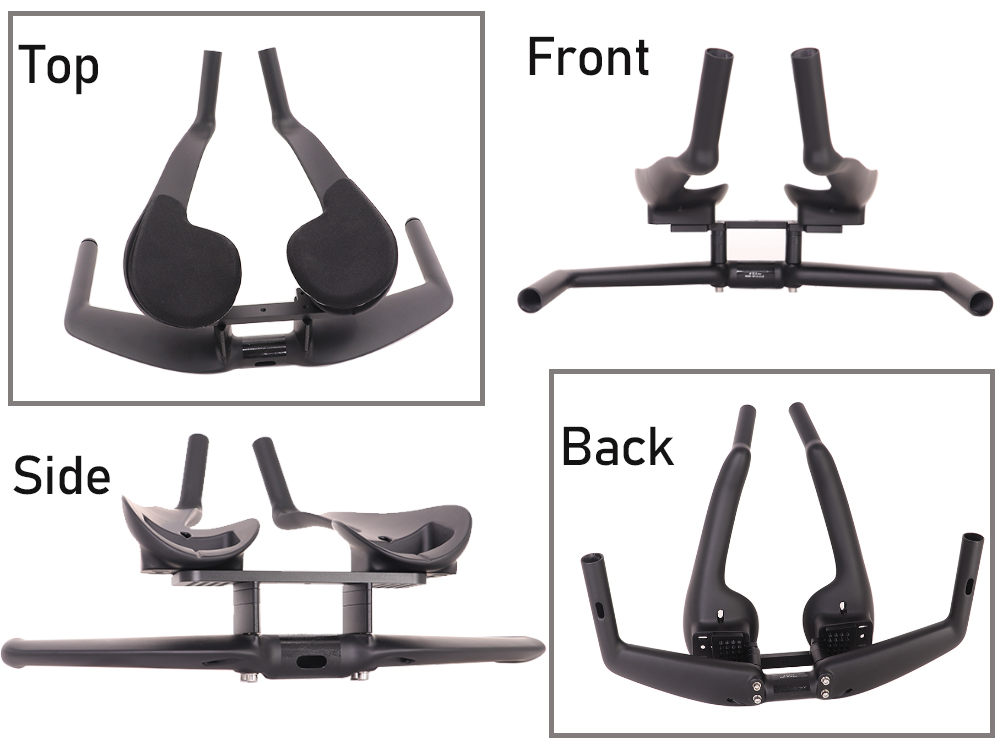

TT bar 400/420/440 mm; vice bar angle 15 deg; stem 90 mm; stem torque 5.0 Nm
Drivetrain
Di2 compatible
Seatpost Wt.
365 g (incl. metal parts)
Geometry

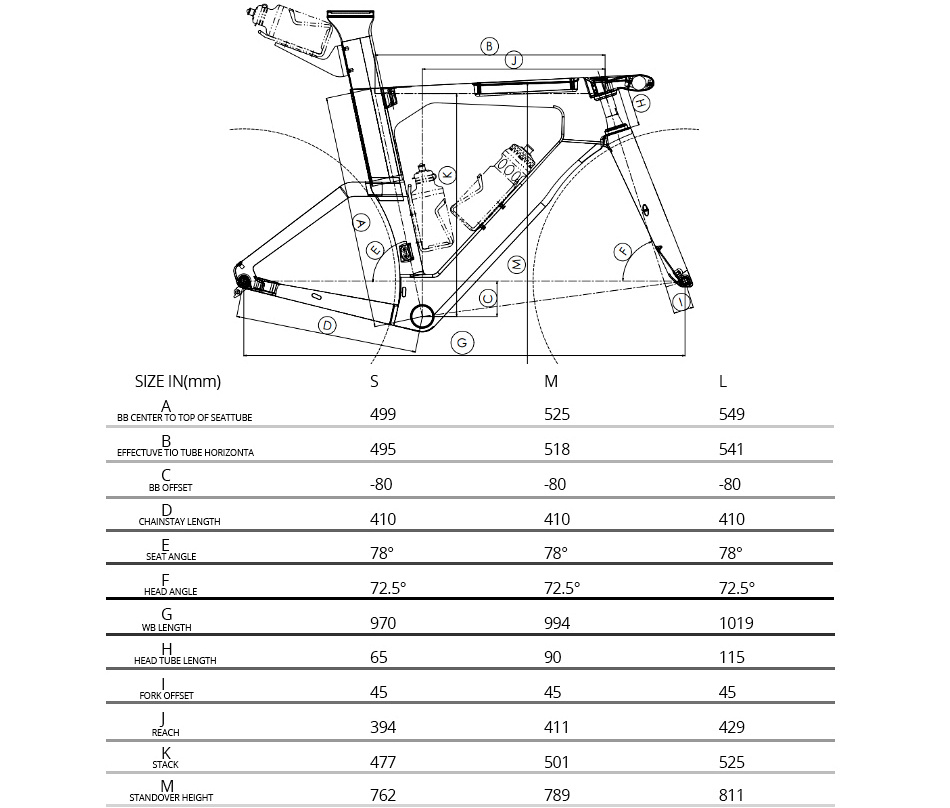

HTTT-05 Geometry and Size Chart
| Size | Stack | Reach | Seat Tube | Top Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase | BB Drop | Front Center | Fork Offset | Fork Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 477.00 | 394.00 | 499.00 | 495.00 | 65.00 | 72.50 | 78.00 | 410.00 | 970.00 | 80.00 | - | 45.00 | - |
| M | 501.00 | 411.00 | 525.00 | 518.00 | 90.00 | 72.50 | 78.00 | 410.00 | 994.00 | 80.00 | - | 45.00 | - |
| L | 525.00 | 429.00 | 549.00 | 541.00 | 115.00 | 72.50 | 78.00 | 410.00 | 1019.00 | 80.00 | - | 45.00 | - |
Technology
HTTT-05 Design Highlights
OEM / ODM
Customized Painting and OEM Support
Downloads
Technical files and documents
Product RFQ
Send Inquiry
Send model, quantity, target market and project notes. Sales will reply with the next confirmation step.
