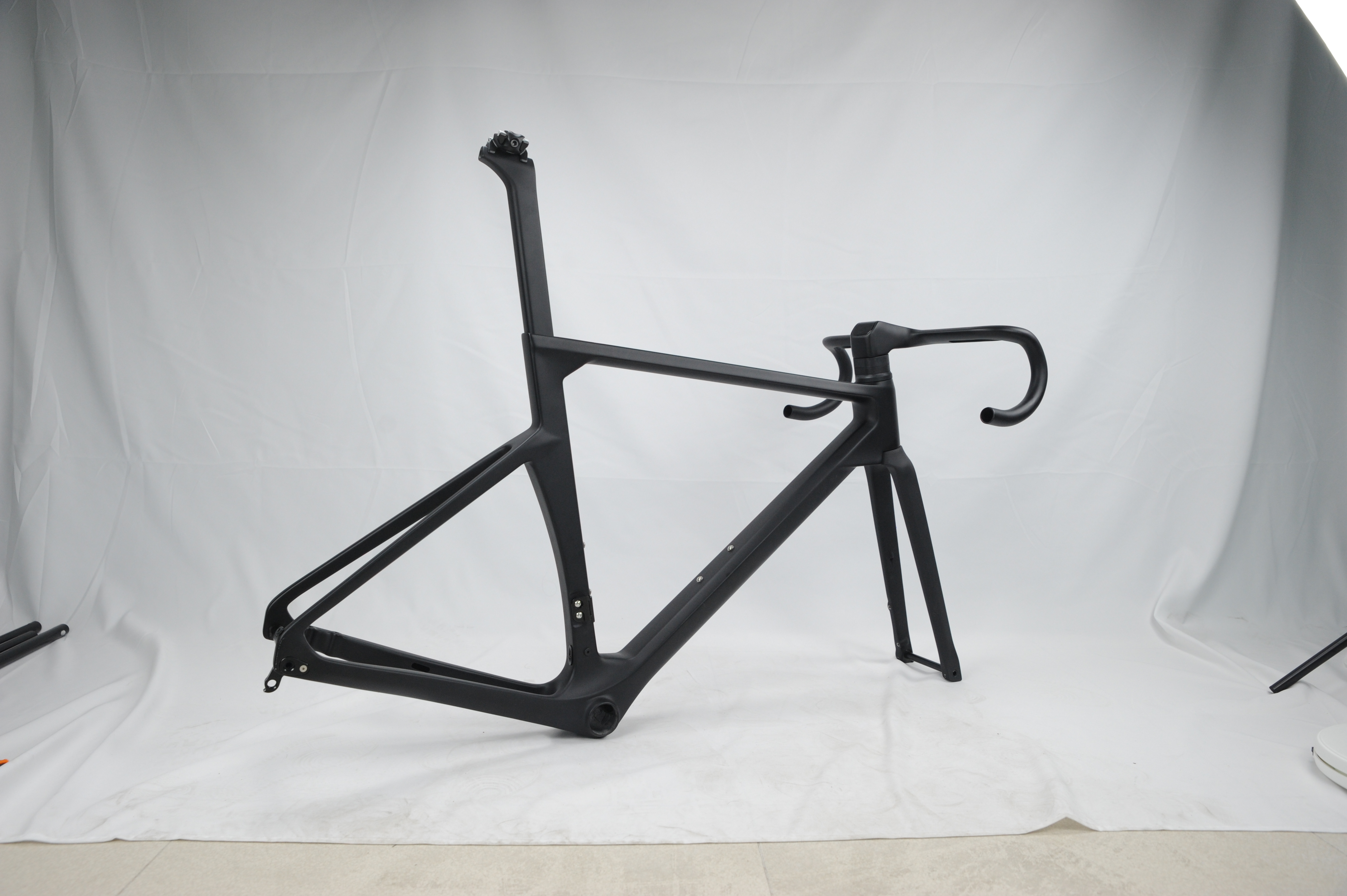

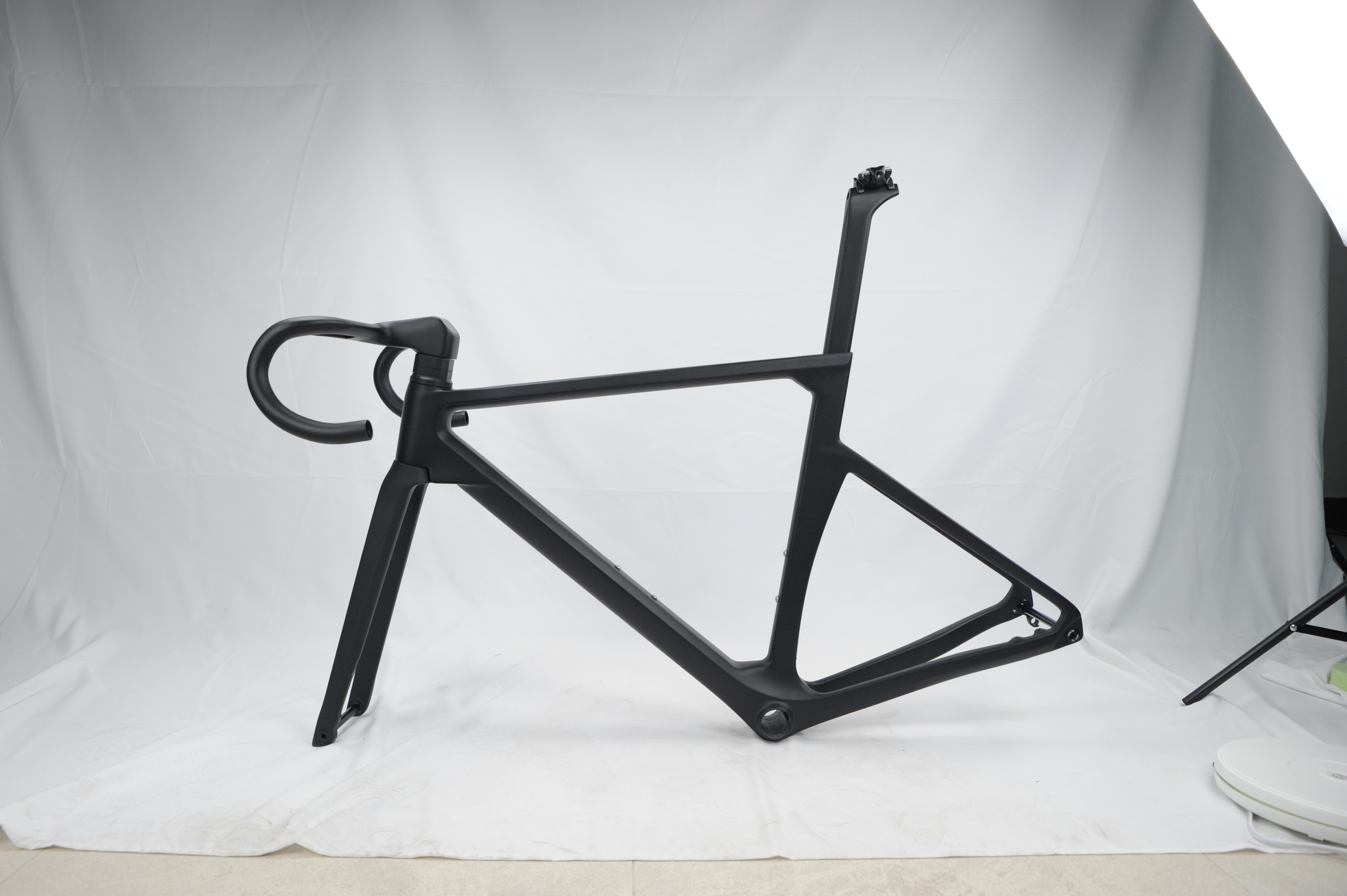

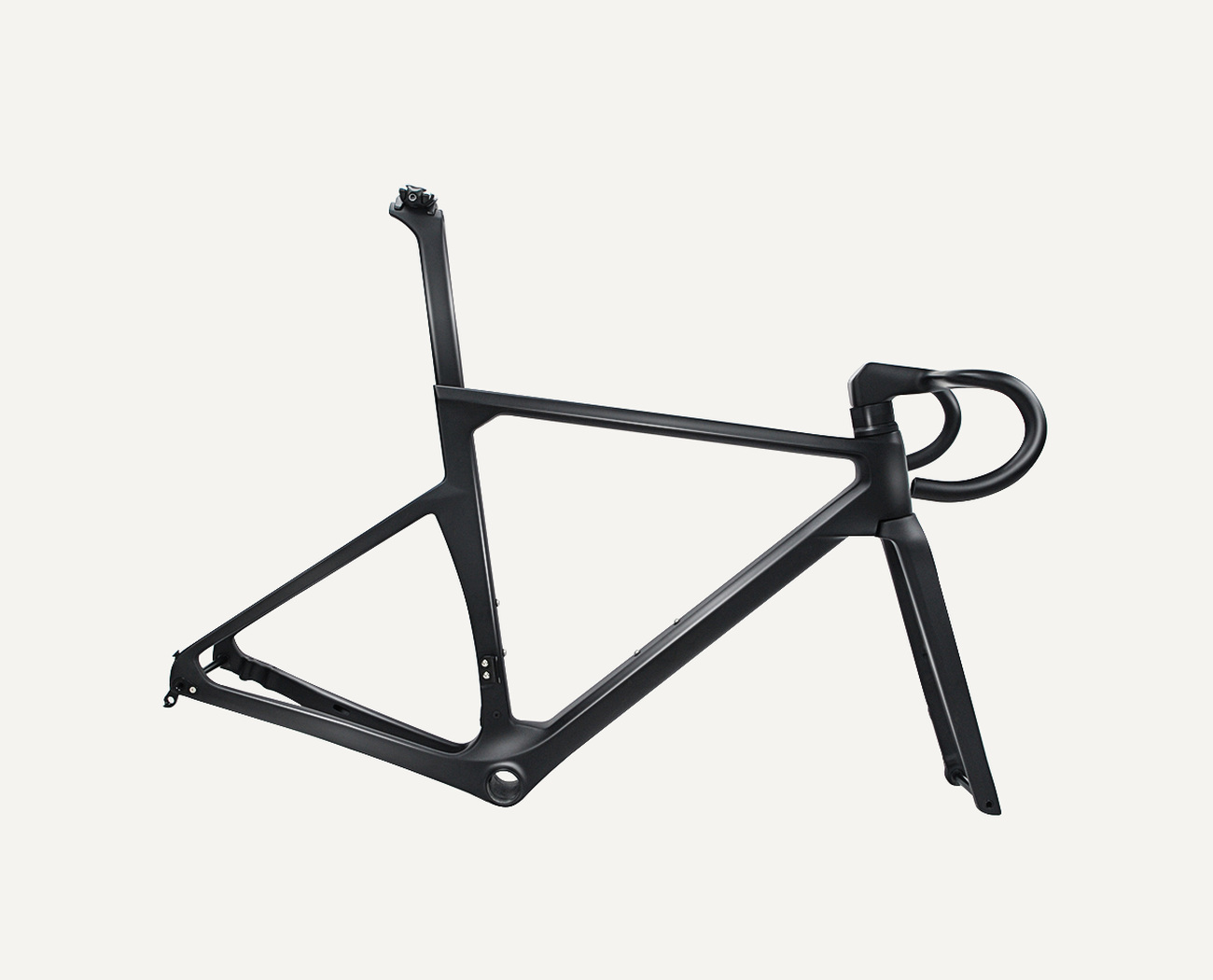

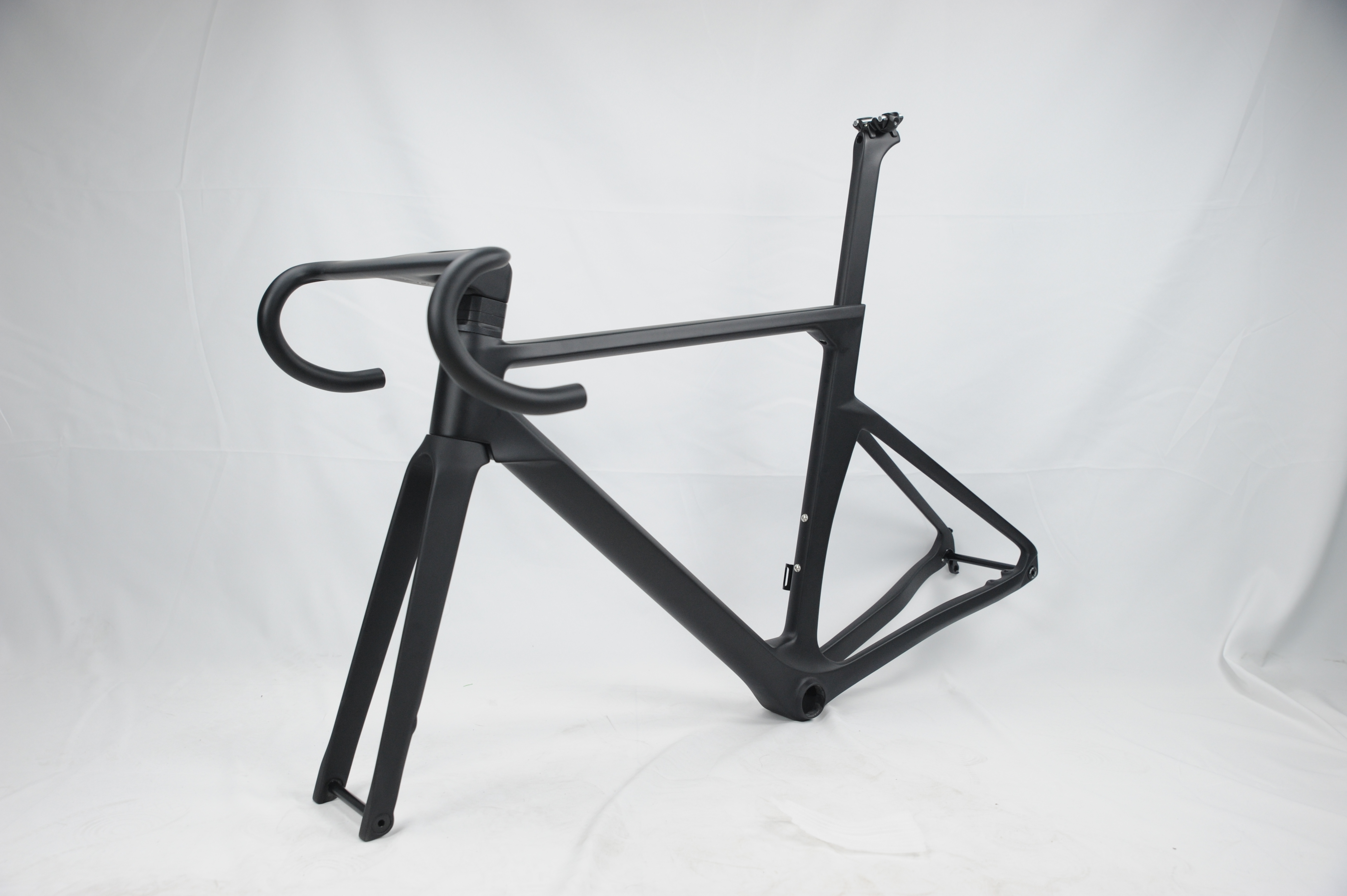

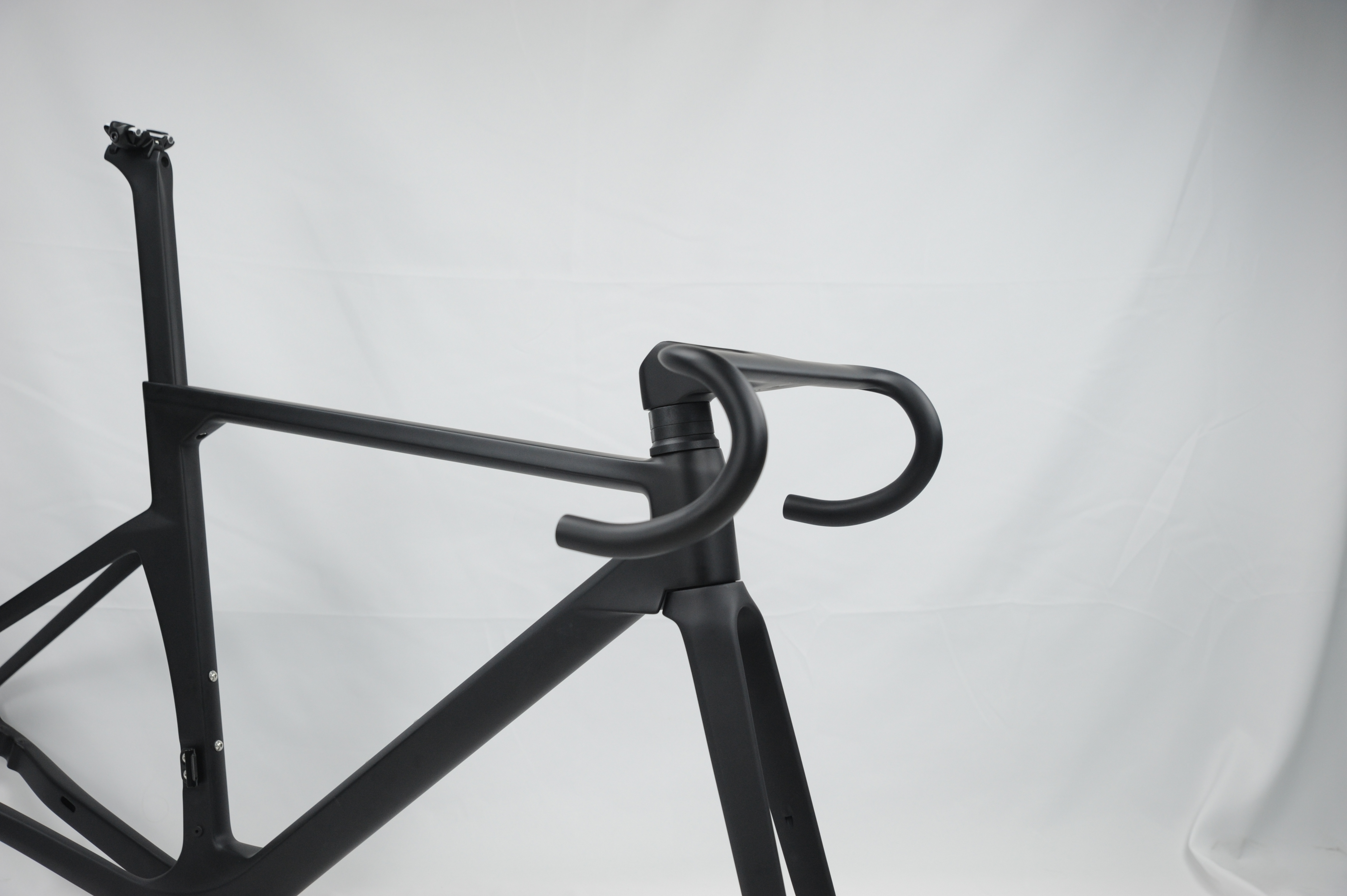

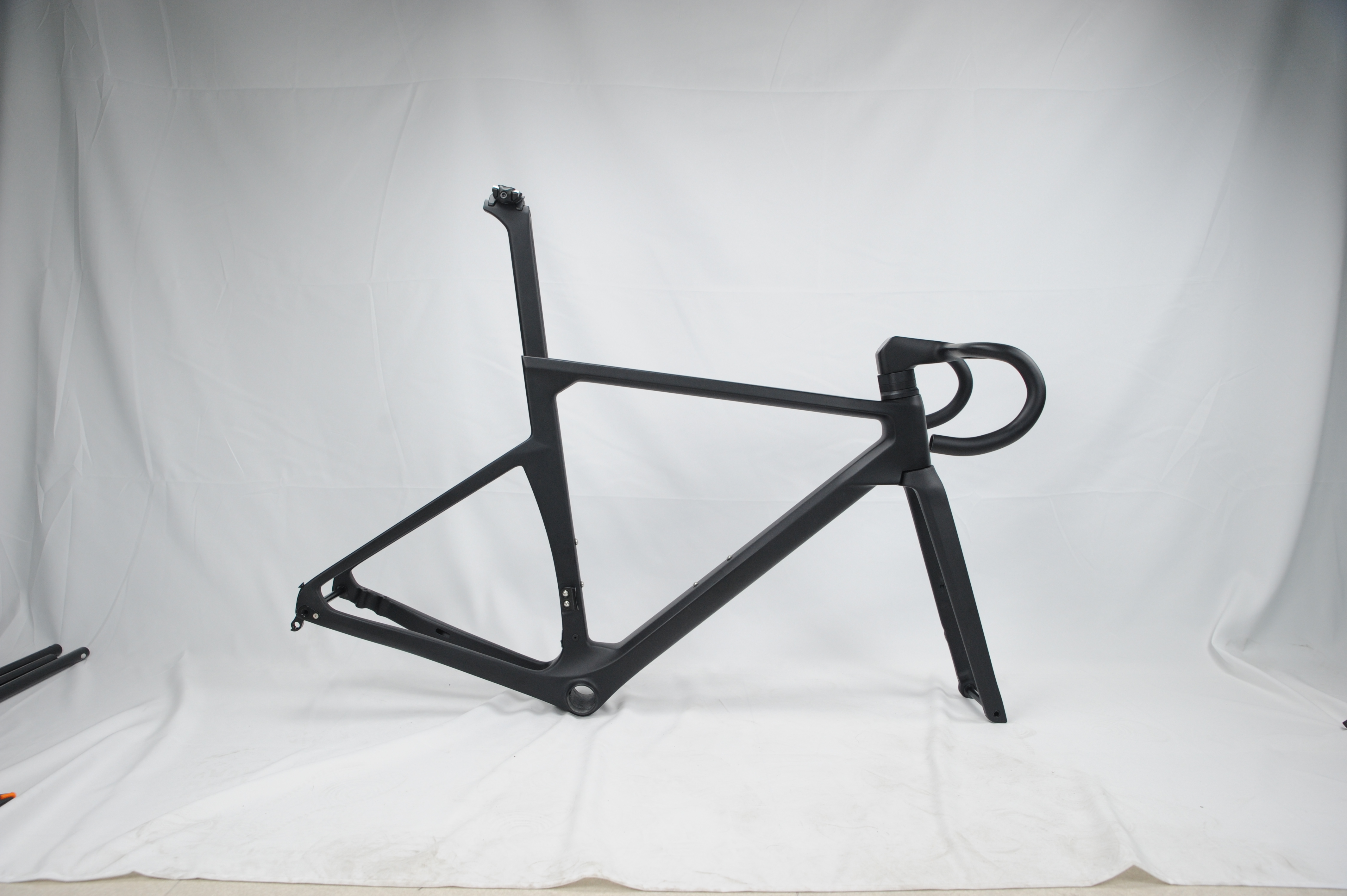

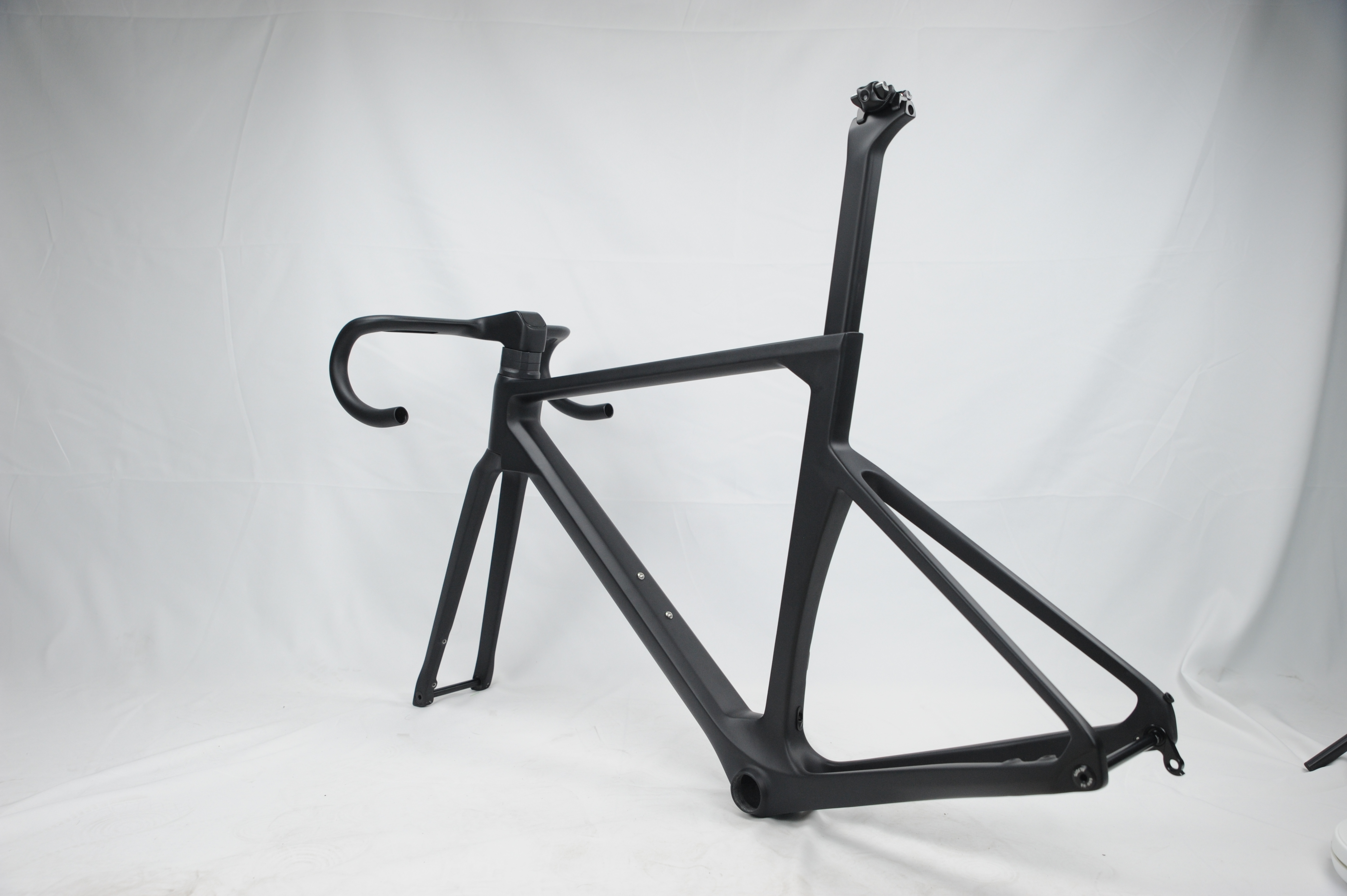

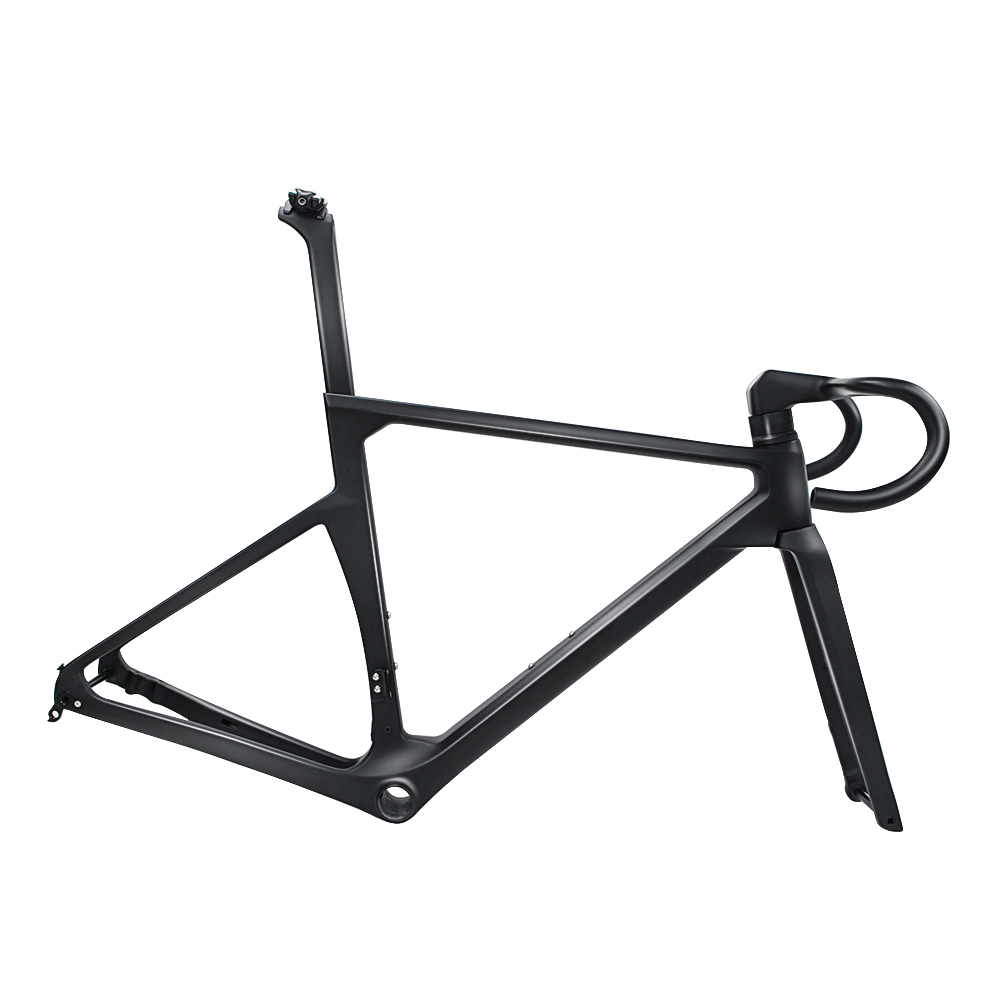

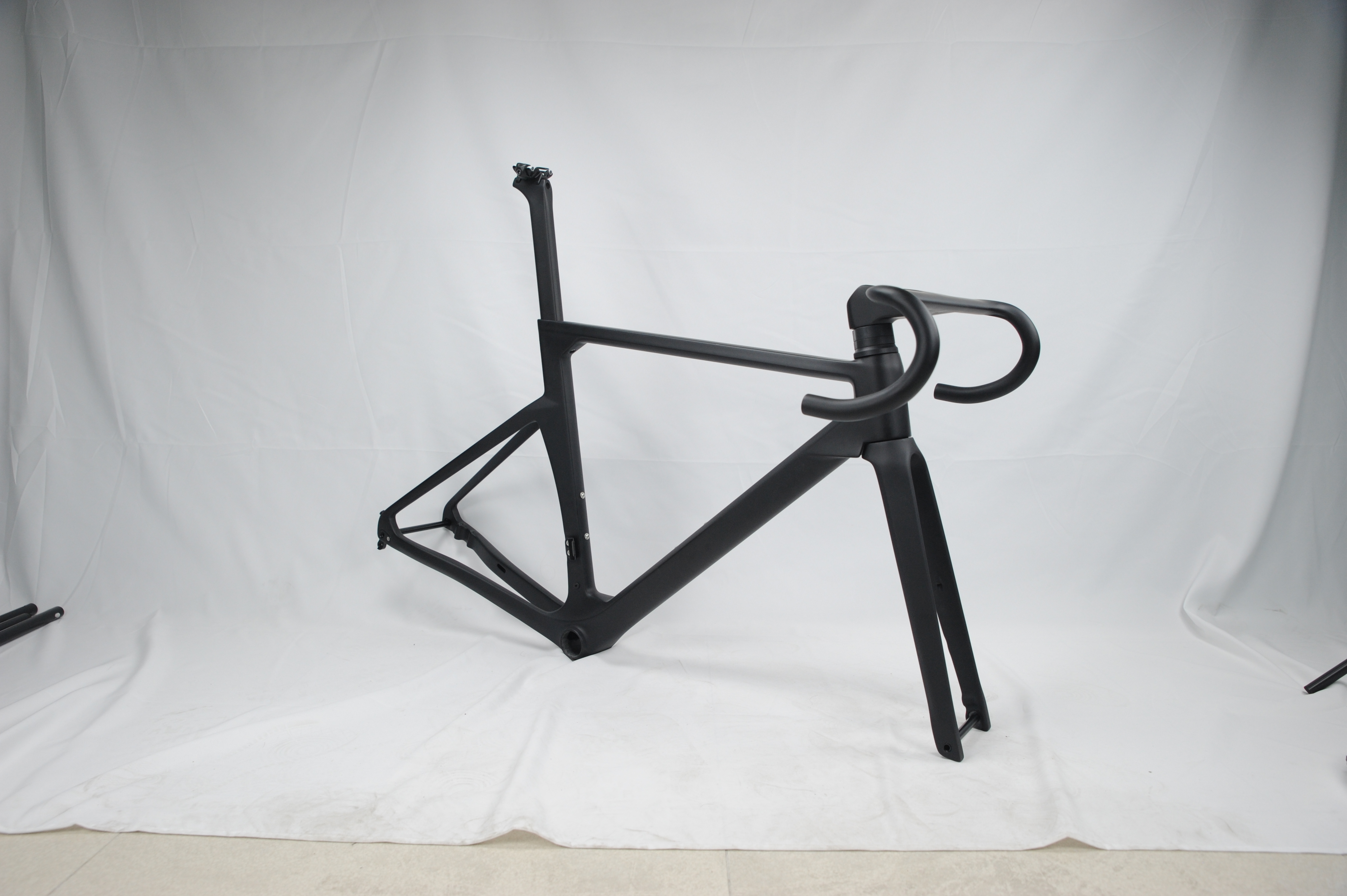

HTR-050 Disc Road Frameset

HTR-050

Road disc brake / OEM road frameset projects; Toray T800 carbon fiber + T1000 reinforcement; BB86 press-fit; max tire 700 x 28C

HTR-050 is a disc road frameset for road disc brake / oem road frameset projects. Catalog specification: Toray T800 carbon fiber + T1000 reinforcement; PU + bladder molding; BB86 press-fit; Internal cable routing. Final quotation should confirm size, finish, included parts, packing and project requirements.

Frame Size: 48

Handlebar Size: 380/90

Finish: UD Matte

Paint Option: UD Carbon

Request Quote WhatsApp

Design this frame HTR-050 geometry PDF

Specification

HTR-050 Product Specification

Product Type

Road frameset

Material

Toray T800 carbon fiber + T1000 reinforcement

Size

48/50/52/54/56 cm

Weight

1330 +/- 30 g (size M)

Brake Mount Type

Disc brake / D-brake

Max Tire Clearance

700 x 28C

MOQ

30 pcs

Sample Lead Time

Approx. 45 days after payment and final confirmation

BB86 press-fit

Kit

frame, headset, carbon fork, carbon seatpost

Use

Road disc brake / OEM road frameset projects

Name

Disc road frameset

Type

Road frameset

Wheel

700C

Hanger

thru-axle hanger

Bar Wt.

370

Headset

1-1/8" to 1-1/2"

Packing

110 cm x 25 cm x 60 cm

Process

PU + bladder molding

Routing

Internal cable routing

F/R Axle

100 x 12 mm / 142 x 12 mm

Fork Wt.

420 +/- 10 g

Seatpost

carbon seatpost

Frame Wt.

1330 +/- 30 g (size M)

Bar / Stem

carbon bar 400/420/440 mm; stem 90/100/110 mm; drop 125 mm; reach 70 mm

Seatpost Wt.

130 +/- 10 g

Geometry

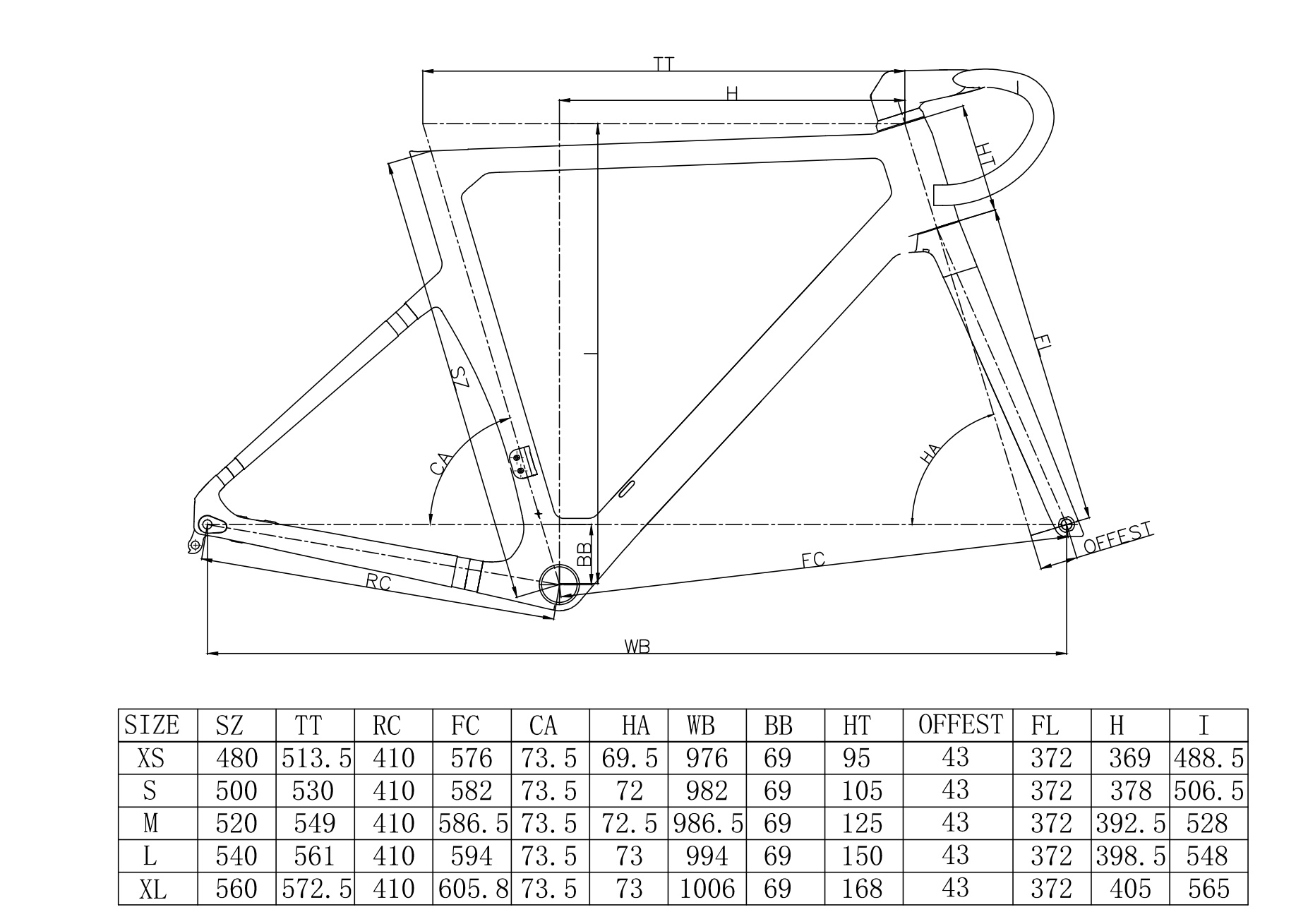

HTR-050 Geometry and Size Chart

Size	Stack	Reach	Seat Tube	Top Tube	Head Tube	Head Angle	Seat Angle	Chainstay	Wheelbase	BB Drop	Front Center	Fork Offset	Fork Length
XS	488.50	369.00	480.00	513.50	95.00	69.50	73.50	410.00	976.00	69.00	576.00	43.00	372.00
S	506.50	378.00	500.00	530.00	105.00	72.00	73.50	410.00	982.00	69.00	582.00	43.00	372.00
M	528.00	392.50	520.00	549.00	125.00	72.50	73.50	410.00	986.50	69.00	586.50	43.00	372.00
L	548.00	398.50	540.00	561.00	150.00	73.00	73.50	410.00	994.00	69.00	594.00	43.00	372.00
XL	565.00	405.00	560.00	572.50	168.00	73.00	73.50	410.00	1006.00	69.00	605.80	43.00	372.00
